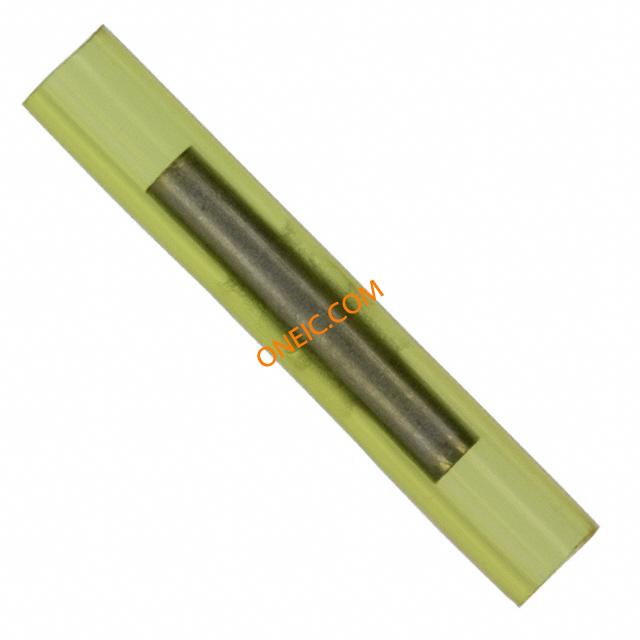

BSN22-C
| 制造商 | Panduit Corp. |
| 描述 | Splice Terminal 22-26AWG 20.1mm Terminals BUTT SPLICE NYLON INSUL BUTT SPLICE NYLON 26-22AWG TYPE BSN BUTT SPLICE;NYLON INSULATED; 26-22AWG TERMINAL, BUTT SPLICE, 0.08IN, YELLOW TYPEBSNBUTTSPLICE,NYLONINSULATED;26-22AWG Butt Splice, Nylon Insulated, 26-22 AWG, Pack of 100 |
| 分类 |
商业参数
| 产品 | Splices | 交货时间 | 14 Days |
| 子类别 | Connector Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
机械参数
| 颜色 | Yellow | 长度 | 20.1 mm |
| 重量 | 0.800000 oz | 材料（通用） | Nylon |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 安装类型 | Wire | 螺柱/焊片尺寸 | :- |
| 端子类型 | Butt Splice, Inline, Individual Openings | 行程角度 | Straight |
| 连接器类型 | :Butt Splice | 接触镀层 | Tin |
| 触头材料 | Copper | 绝缘颜色 | :Yellow |
| 总长度 | 0.79" | 包装数量 | 100 |
| 主要材料 | Splice | 端接样式 | Crimp |
| 绝缘直径 | 0.08" | 绝缘材料 - 类型 | Nylon |
| 进线口数 | 2 | 线规或范围 - AWG | :26AWG |
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | :BSN | 产品特性 | Barrel |
| 制造商全称 | BSNSeries | ||
