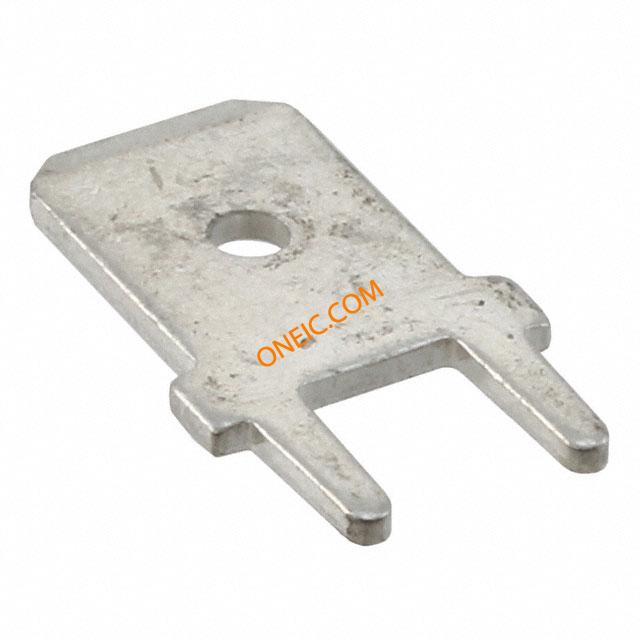

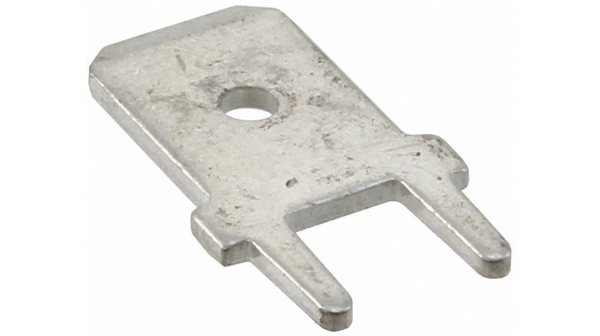

726386-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal M 14mm 8mm Tin Loose Piece Terminals GDS-FLACHSTECK 6.3 Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB .250 TIN STRAIGHT Tab terminal, PCB, FASTON 250, straight Quick Disconnect Terminal M 14mm 8mm Tin Loose Piece Product Highlights:TabTab Type = Printed Circuit BoardTab Fit = 6.35 x 0.81 mmBrass MaterialTin FinishSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TAB, STRAIGHT, 6.3X0.8MM CONN QC TAB 0.250 SOLDER CRIMP,TAB,STRT,6.35X0.8MM Terminal: flat; 6.3mm; 0.8mm; male; THT; brass; tinned; straight Faston-Tab Brass, 726386-2, TE Connectivity TE Connectivity FASTON .250 系列, 直向安装 PCB 插片接线端子, 6.35 x 0.81mm, 镀锡触芯 FASTON 250 TAB .032 TPBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 5,000 | 工厂包装数量 | 5000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 8 mm |
| 宽度 | :6.3mm | 表面处理 | Tin |
| 高度 | :14.0mm | 长度 | 14 mm |
| 重量 | 0.048 | 材料（通用） | Copper Zinc |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.8mm | 绝缘类型 | Not Insulated |
| 插片长度 | 0.315" (8.00mm) | 方向 | straight |
| 端接方式 | Solder | 引脚间距 | :5.1mm |
| 基体材料 | Brass | 安装类型 | Through Hole |
| 螺柱/焊片尺寸 | 6.3 mm x 8 mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Male Disconnect |
| 接触镀层 | Tin over Copper | 壳体镀层 | Tin |
| 电路板厚度 | 1.57 [0.062] | 触头材料 | Copper Zinc |
| 绝缘颜色 | :(Not Available) | 总长度 | 0.551" (14.00mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Without |
| 插针孔直径 | 1.40 [0.055] | 端接样式 | Solder Pin |
| 接触件端接 | Without | 绝缘材料 - 材质 | :Uninsulated |
| 安装孔直径 | Without | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1 | 样式 | Straight |
| 连接器性别 | Male | 系列 | :FastOn |
| CAD图纸 | 3D CAD Model | 产品子类型 | Tab |
| 单元数量 | 1 | 其他规格 | Printed Circuit Board |
