2-520129-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 16.14mm 14.73mm Tin Loose Piece Terminals FLAG RECP 22-18 .250 .250 x .032 Ultra-Fast Receptacles & Tabs CONN FAST FLG RCPT 18-22AWG .250 Flag terminal,Ultra-Fast 250, AWG 22-18 Quick Disconnect Terminal 18-22AWG RCP 16.14mm 14.73mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = FlagTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 6.3X0.8MM 250ULTRA-FASTFLG22-18TPBR Terminal: flat; 6.3mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast .250 系列 红色 绝缘 镀锡触芯 旗形压接端子 , 6.35 x 0.81mm ULTRAFAST 250 ASSY FLAG 22-18 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Red | 深度 | 14.73 mm |
| 宽度 | 6.3mm | 表面处理 | Tin |
| 重量 | 0.002 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.8mm |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 方向 | angled 90° | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 0.025 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 行程角度 | 90°(Flag) |
| 连接器类型 | :Spade | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Flag | 总宽度 | 0.58" |
| 触头材料 | Brass | 套圈材料 | insulated |
| 绝缘颜色 | :Red | 总长度 | 16.14mm |
| 包装数量 | Loose Piece | 主要材料 | QuickDisconnect |
| 绝缘高度 | Non-Insulation Support | 连接器颜色 | Red |
| 绝缘直径 | 4.19 [.165] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :4.19mm | ||
产品信息
| SPG | 1 | 类型 | Receptacle, Faston |
| 连接器性别 | Female | 系列 | 250 |
| CAD图纸 | 3D CAD Model | 应用 | Standard |
| 制造商全称 | ULTRA-FAST | 产品子类型 | Receptacle |
| 单元数量 | 1 | 专有名称 | Ultra-Fast |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
90390-3
te connectivity / amp

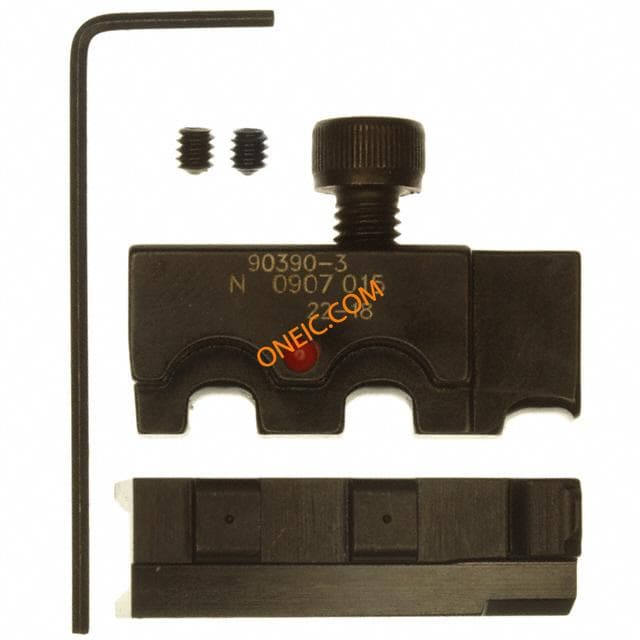

Connector Accessories Crimp Die Set Punches & Dies DIE SET 22-18 AWG DIE SET ULTRA-FASTONS 22-18 AWG Crimping die, Ultra-Fast AWG 22-18 DIE SET, ULTRA FAST, 18-22AWG AMP;RATCHETDCRIMPTOOL;DIESONLY;FOR22-18AWG Crimping dies, 90390-3, TE Connectivity TE Connectivity Tetra-Crimp 系列 压接模具 , 22 → 18 AWG 线规格, Ultra-Fast 接线端子 DIE ULTRA FAST 22-18 U/58078-3
90391-3
te connectivity / amp

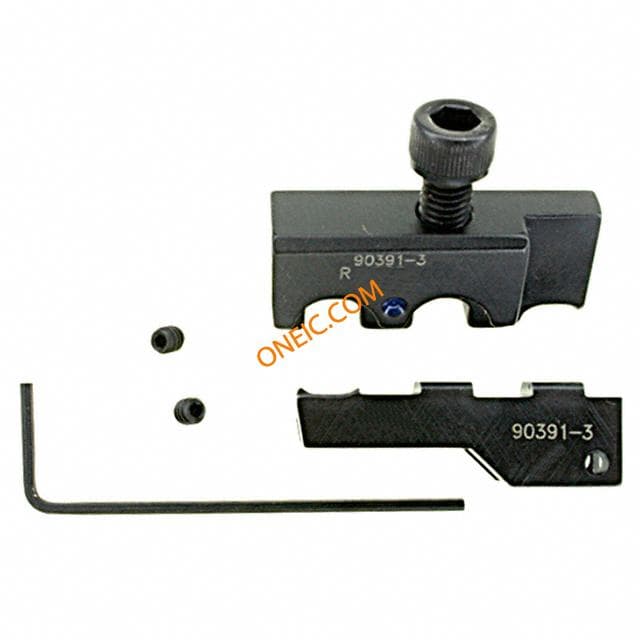

Connector Accessories Crimp Die Set Punches & Dies DIE SET 16-14 AWG DIE SET ULTRA-FASTONS 16-14 AWG Crimping die, Ultra-Fast AWG 16-14 DIE SET, ULTRA FAST, 14-16AWG AMP;RATCHETDCRIMPTOOL;DIESONLY;16-14AWG Crimping dies, 90391-3, TE Connectivity TE Connectivity Tetra-Crimp 系列 压接模具 , 16 → 14 AWG 线规格, Ultra-Fast 接线端子 DIE ULTRA FAST 16-14 U/58078-3
