640903-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG F 23.37mm 7.62mm Tin Loose Piece Terminals PIDG RECPT 22-18 AWG red Quick Disconnect Terminal 18-22AWG F 23.36mm 7.62mm Tin Loose Piece Quick Disconnect Receptacles - Insulated CONN RECEPT FASTON 18-22AWG .250 Receptacle terminal, PIDG FASTON 250,red Quick Disconnect Terminal 18-22AWG F 23.36mm 7.62mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Tab Fit = 6.35 x 0.81 mmInsulation Diameter = 3.56 [.140] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 6.35MM, RED CRIMP TERMINAL, FEMALE, RED AMP;RECEPTACLE;22-18AWG;DIMPLEW/WIRESTOP;TINPLATEDBRASS Terminal: flat; 6.3mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned PIDG Faston 22-18 AWG Straight Insulation Support Quick Disconnect Receptacle Blade receptacle insulated Faston, 0.3...1 mm², 22...18 AWG, FASTON-250, 640903-1, TE Connectivity TE Connectivity PIDG FASTON .250 系列 红色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 RECEPT,PIDG FASTON 22-18 250 |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | UL等级 | Approved |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 额定电压 | 300 VAC | 供电电压 | 300 |
机械参数
| 颜色 | Red | 深度 | 7.62 mm |
| 宽度 | :6.35mm | 表面处理 | Tin |
| 重量 | 1.347 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.46 [0.018] |
| 绝缘类型 | Insulated | 插片长度 | 0.305" (7.75mm) |
| 导线线规 | 22-18 | 方向 | straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 安装样式 | for cable | 壳体镀层 | Tin |
| 连接器样式 | Straight | 插入力 | Normal |
| 触头材料 | Brass | 套圈材料 | insulated |
| 绝缘颜色 | :Red | 总长度 | 0.900" (22.86mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 连接器颜色 | :Red | 绝缘直径 | 3.56 [.140] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | No |
| 线规或范围 - AWG | 509 â 1,900 | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 触点材料 - 镀层 | tinned | 外径-未扩张 | :3.56mm |
产品信息
| SPG | 1 | 类型 | Quick Disconnect Terminal |
| 连接器性别 | Female | 系列 | 250 |
| 纹理 | Dimple with wire stop | CAD图纸 | 3D CAD Model |
| 单元数量 | 1 | 专有名称 | PIDG FASTON |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号

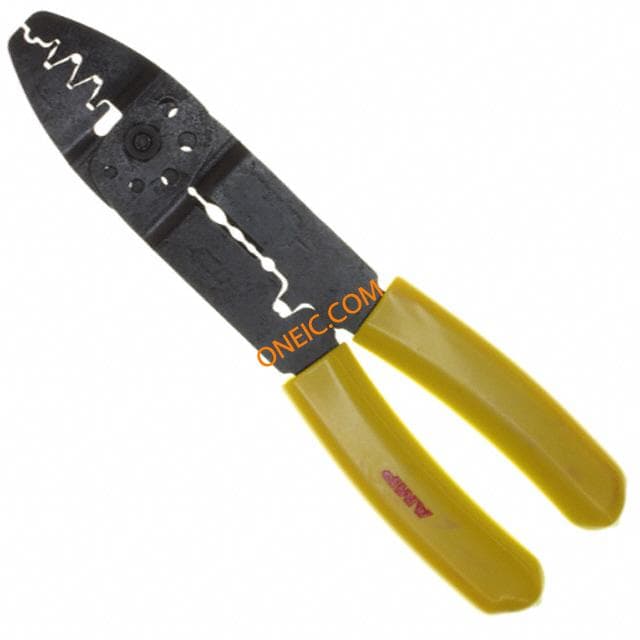

696202-1
