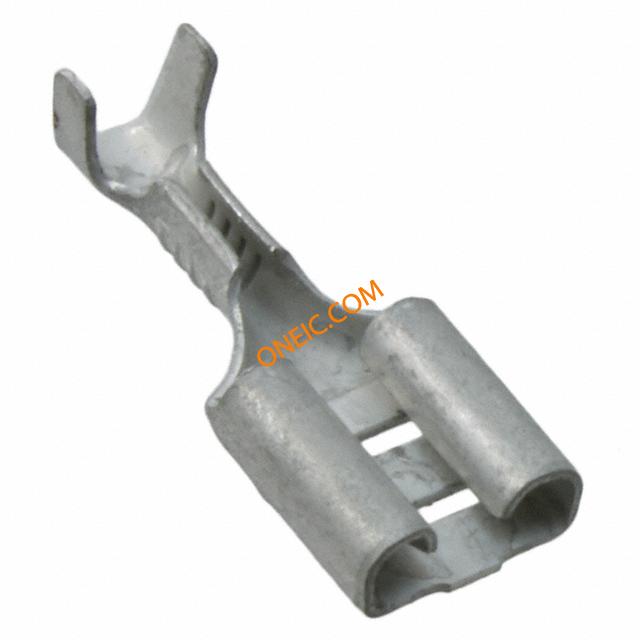

41969-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 20.44mm Tin Loose Piece Terminals FASTON PREM. REC LP FASTON Uninsulated Receptacles & Housings FASTON PREM. REC LP Receptacle terminal,FASTON 250,AWG 22-18 Quick Disconnect Terminal 18-22AWG RCP 20.44mm Tin Loose Piece Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CRIMP TERMINAL, FEMALE, PK100 FASTON6.3,0.3-0.8MM Terminal: flat; 6.3mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FASTON 250 TERMINAL REC 22-18 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 500 | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 宽度 | 6.3mm | 表面处理 | Tin |
| 长度 | 0.805in | 重量 | 0.07 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.46 [0.018] |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 导线线规 | 22-18 | 方向 | straight |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 安装样式 | for cable |
| 连接器样式 | Straight | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Brass |
| 套圈材料 | non-insulated | 绝缘颜色 | :(Not Available) |
| 总长度 | Premier | 包装数量 | Loose Piece |
| 绝缘高度 | Insulation Support | 连接器颜色 | :Tin |
| 绝缘直径 | 2.29-3.30 [.090-.130] | 绝缘材料 - 材质 | :(Not Available) |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 触点材料 - 镀层 | tinned | 第二连接器安装特性 | No |
| 外径-未扩张 | :3.3mm | ||
产品信息
| SPG | 1 | 备注 | Wire barrel pre-crimped. |
| 连接器性别 | Female | 系列 | 250 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Receptacle | 单元数量 | 1 |
环境参数
| 工作温度 | :105°C | ||
