点击放大查看
647401-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 7 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 7POS HOUSING SL-156 Headers & Wire Housings 07P SL156 HSG W/RAMP LRG OPEN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Housing7 PositionsConnector Style = ReceptacleContact Type = ReceptacleSL-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P SL156 HSG W/RAMP,LRG OPEN |
| 分类 |
商业参数
| 标准包装规格 | 1 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Locking Ramp | 供电电压 | 250 VAC |
| 连接器阻抗 | 压接 | 最大额定电流 | 6.5 |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 自然 | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | 3.96 [0.156] | 紧固类型 | Locking Ramp |
| 安装样式 | 不带 | 排数 | 1 |
| 外壳材料（壳体） | 盖 | 连接器用途 | Receptacle |
| 高度（英寸） | 6.35 | 锁定特性 | Locking Ramp |
| 壳体材料 | Nylon | 总长度 | 1.126 |
| 安装特性 | Without | 包装数量 | 1 |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 7 | 端接表面处理 | 不带 |
| 接触件端接 | Crimp | 绝缘直径 | Large |
| 位数 | 7 | 兼容外壳尺寸（如TM-700等） | SL .156 端子 |
| 安装孔直径 | 不带 | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
文档与媒体
相关型号

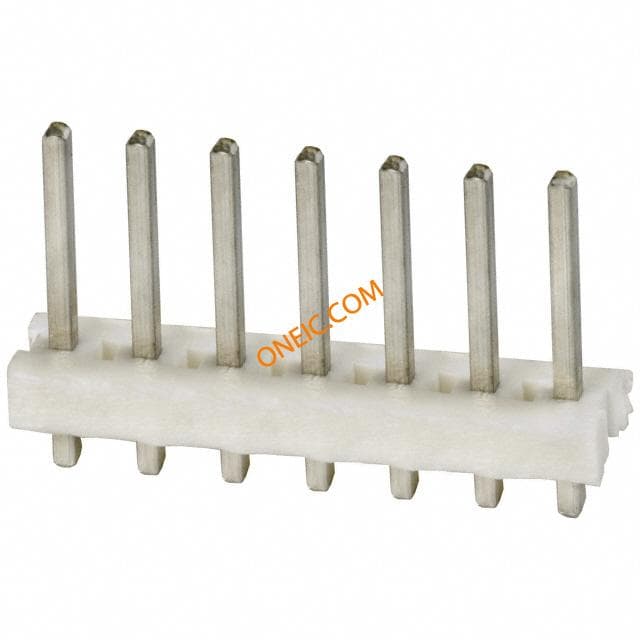

640383-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR SQ SN

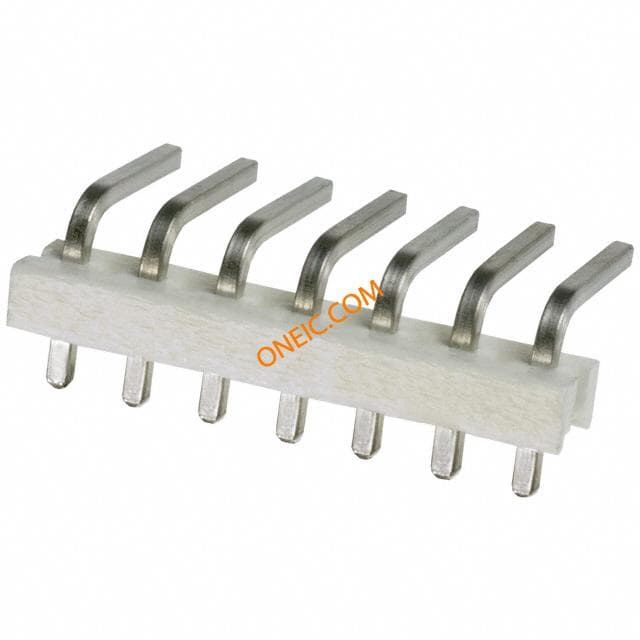

640385-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 7P Square post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A
641208-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .156 7POS 30AU Headers & Wire Housings FRCTN LK HDR STR 7P Square post gold Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header7 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY FL ST 30AU
647485-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN CONTACT 16AWG GOLD CRIMP Power to the Board CONTACT 30 AU SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SL-156 ContactsWire Termination Type = CrimpGold (30) Contact Plating, Mating Area, MaterialWire Size = 1.29-1.42² [16] mm² [AWG]Used For SL-156 Large Insulation Diameter WireSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPT,AUNI/PHBZ,L/P,LRG

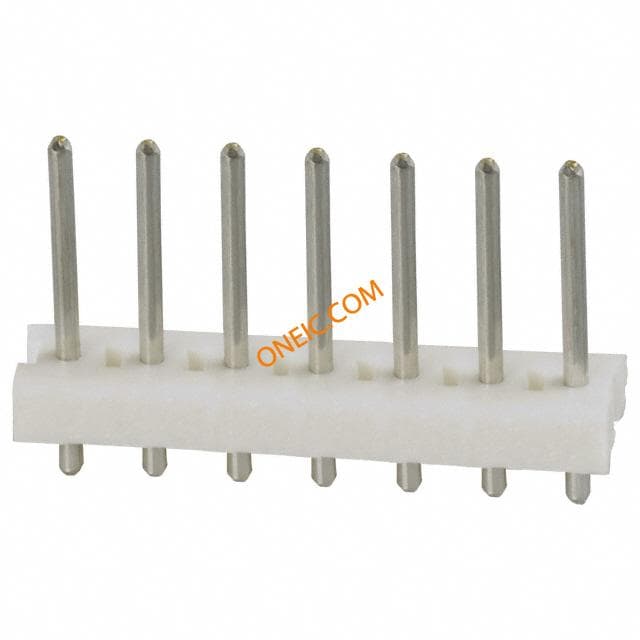

640384-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 7P Round post tin Conn Unshrouded Header HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:7 PositionsPreloadedHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY STR RND SN
644766-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD
647406-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN CONTACT SL156 18-24AWG Headers & Wire Housings SLD 156 RCPT AUNI/PHBZ LARG DIA SL156 RECPT,AUNI/PHBZ,LARG DIA SL156 RECPT,AUNI/PHBZ,LARG DIA Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP
641120-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS VERT .156 GOLD Headers & Wire Housings 07P MTA156 HDR ASSY FL/ST 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 Connectors7 PositionMating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644751-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings 7P HDR ASSY R/A 07P MTA156 HDR ASSY R/A
647409-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings SLD 156 RCPT AUNI/PHBZ L/P LRG MTA, CST, CST-100 II and SL Contacts CONN CONTACT 18-24AWG GOLD CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 Large Insulation Diameter WireSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPT,AUNI/PHBZ,L/P,LRG

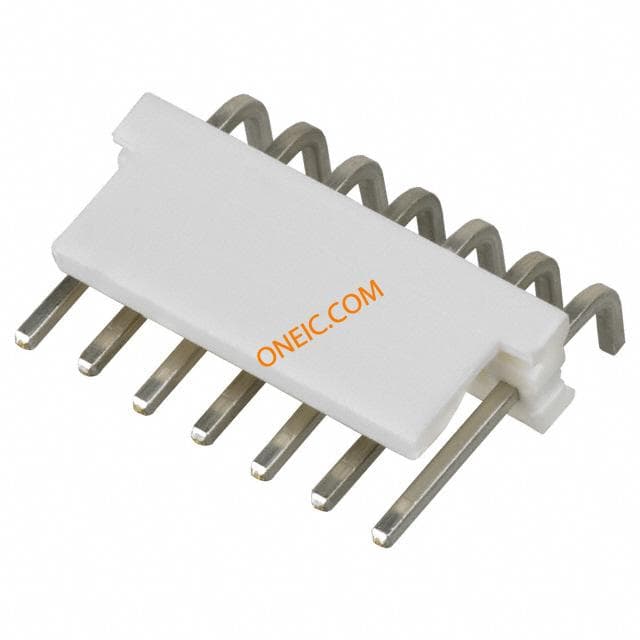

640389-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 7P Square post tin Conn Wire to Board HDR 7 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA156 HDR ASSY SQ R/A F/L

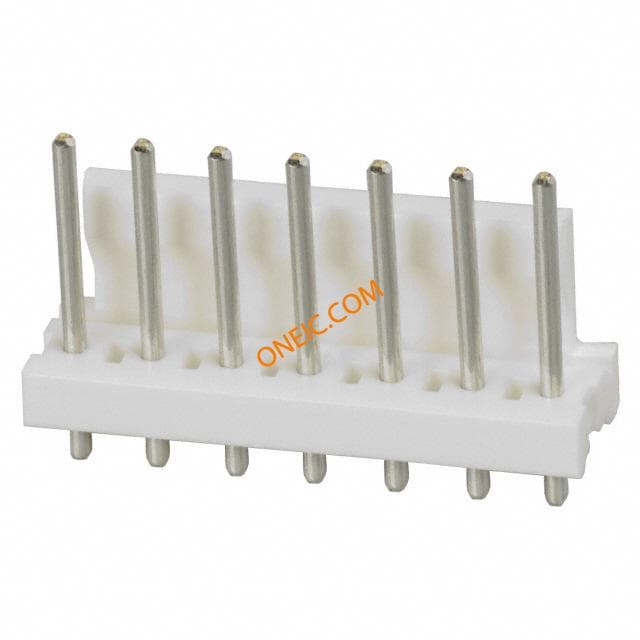

640388-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 7P Round post tin Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-156 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 3.96MM MTA-156HEADER-TIN,07PMTA156HDRASSYRNSTRF/L TE Connectivity MTA-156 系列 3.96mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 07P MTA156 HDR ASSY RN STR F/L

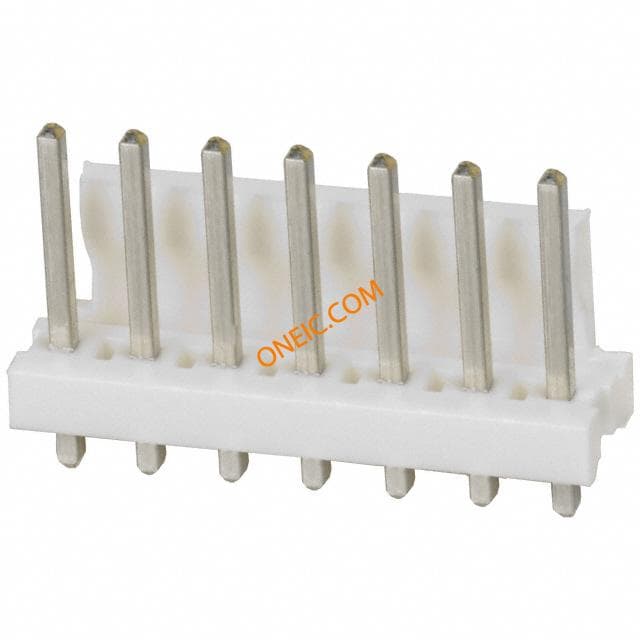

640445-7
