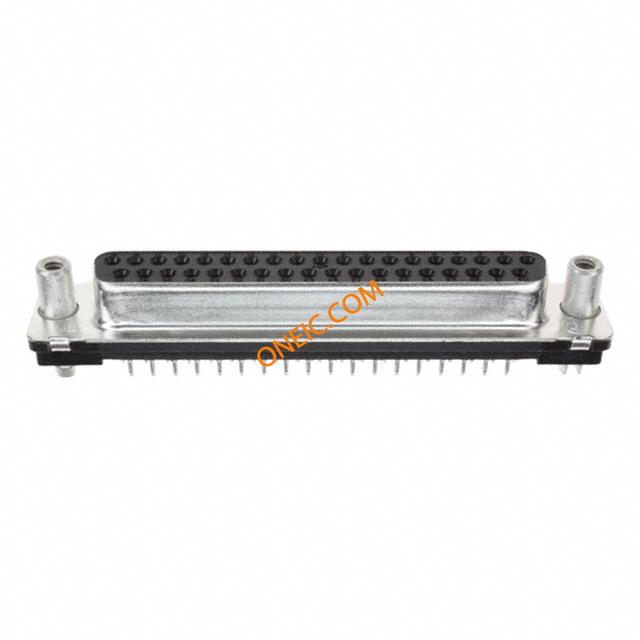

点击放大查看
5787685-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37 RCPT SP/FMS RET SL Standard Board Mount Connectors CONN D-SUB RCPT VERT 37POS Conn D-Subminiature SKT 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 37 RCPT SP/FMS (RET SL) |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 7 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 标准 | UL E28476 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | Black | 深度 | 12.55 mm |
| 间距 | 2.77 mm | 高度 | 12.42 mm |
| 密封型 | No | 外形尺寸(长x宽) | 4 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | Round | 外壳尺寸 | 4 |
| 端接方式 | Solder | 触头类型 | Signal |
| 外壳表面处理 | 铜镀锡 | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.062 [1.57] | 连接器样式 | D-Sub |
| 插入件材料 | 磷青铜 | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 69.32 mm | 安装特性 | 4-40 固定螺钉锁 |
| 包装数量 | 7 | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | Without |
| 端接样式 | Solder | 连接器颜色 | None |
| 外径 | .66 mm [ .026 in ] | 触点数 | 37 |
| 位数 | 37 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.07 [.121] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | 30µin (0.76µm) |
| 螺钉材料 - 镀层 | Zinc | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | SKT | 系列 | HD-20 |
| 产品特性 | Board Lock | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 1.57 mm [ .062 in ] |
