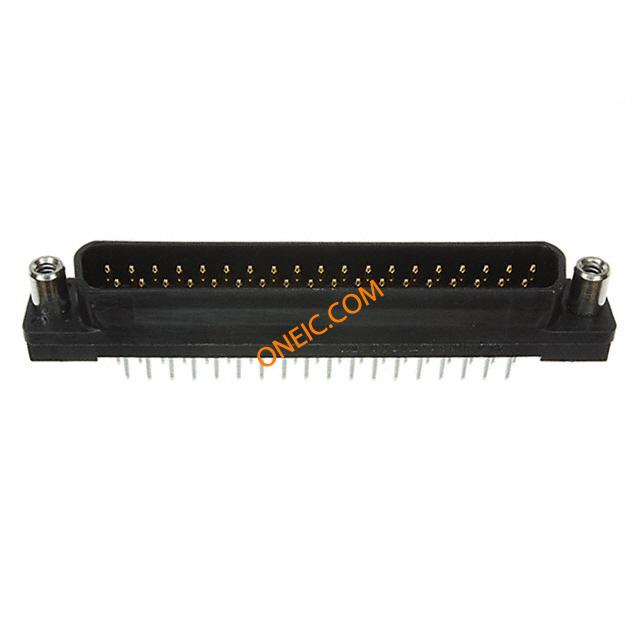

点击放大查看
5745074-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors HD-20 PLUG 37P VERT FFSCRLK Standard Board Mount Connectors CONN D-SUB PLUG STR 37POS T/H AU Standard Board Mount Connectors Product Highlights:Number of Positions = 37PlugPCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, PLUG HD-20 PLUG 37P VERT FFSCRLK |
| 分类 |
商业参数
| 标准包装规格 | 7 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 7 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 密封型 | No | 重量 | 0 |
| 包装方式 | Tube | 外壳尺寸 | 4 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Female Screwlock (4-40) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] |
| 连接器样式 | D-Sub | 锁定特性 | Female Screwlocks, Fixed |
| 本体材料 | :Plastic | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 触点数 | 37 |
| 接触件端接 | :Through Hole Vertical | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.05 [.120] |
| 端子柱长度 | 4.32 [0.170] | 接触镀层厚度 | Flash |
| 螺钉材料 - 镀层 | Brass | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
