点击放大查看

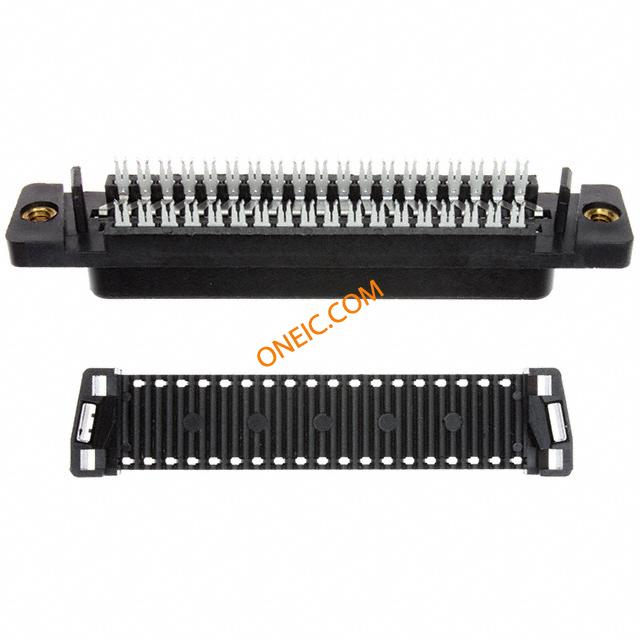

1658609-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.54mm IDT RA Cable Mount 37 Terminal 1 Port Standard Cable Connectors CONN D-SUB RECEPT 37POS 30 GOLD Headers & Wire Housings 37P HDF RCPT Standard Cable Connectors Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 37ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 37 POS HDF RCPT, AP |
| 分类 |
商业参数
| 标准包装规格 | 40 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 刺破式压接 (IDC) | 最大额定电流 | 1.25A |
机械参数
| 颜色 | Black | 间距 | 2.77 mm [ .0545 in ] |
| 外形尺寸(长x宽) | 4 | 材料（通用） | 黄铜 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 电缆类型 | Ribbon Cable | 外壳尺寸 | 4 |
| 导线线规 | .08 – .15 mm² [ 28 – 26 AWG ] | 端接方式 | IDC, Ribbon Cable |
| 触点尺寸 | 20 | 触头类型 | Signal |
| 第二连接器 | With | 电缆开口 | 747275-1 |
| 安装类型 | Free Hanging (In-Line) | 端子尺寸 | 20 |
| 线径 | .81 – .97 mm [ .032 – .038 in ] | 连接器类型 | Insulation Displacement Crimp (IDC) |
| 接触镀层 | Tin over Nickel | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | 低 | 排数 | 2 |
| 封装形式 | 不带 | 外壳材料（壳体） | 热塑性 |
| 连接器样式 | D-Sub | 插入件材料 | Brass |
| 锁定特性 | Threaded Insert, 4-40 UNC | 材料表面处理 | None |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | 无 |
| 包装数量 | 40 | 接地凹痕 | Without |
| 端接样式 | 插座 | 触点数 | With |
| 绝缘直径 | 0.81 â 0.97 [0.032 â 0.038] | 位数 | 37 |
| 外壳尺寸-插件 | All Plastic | 绝缘材料 - 材质 | 747275-1 |
| 螺纹/螺钉/孔尺寸 | Standard | 接触镀层厚度 | 30µin (0.76µm) |
| 外部壳体材料 | Thermoplastic | 线规或范围 - AWG | 0.08 - 0.15 [28-26] |
| 控制侧电缆固定器 | 747275-1 | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | All plug assemblies are supplied with housing and cover preassembled | 等级 | Standard |
| 连接器性别 | Receptacle | 系列 | HDF-20 (Ribbon Cable) |
| 产品特性 | Feed Through | 对数 | 747275-1 |
| 预装 | 是 | 产品子类型 | Connector |
| 其他规格 | 不带 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
