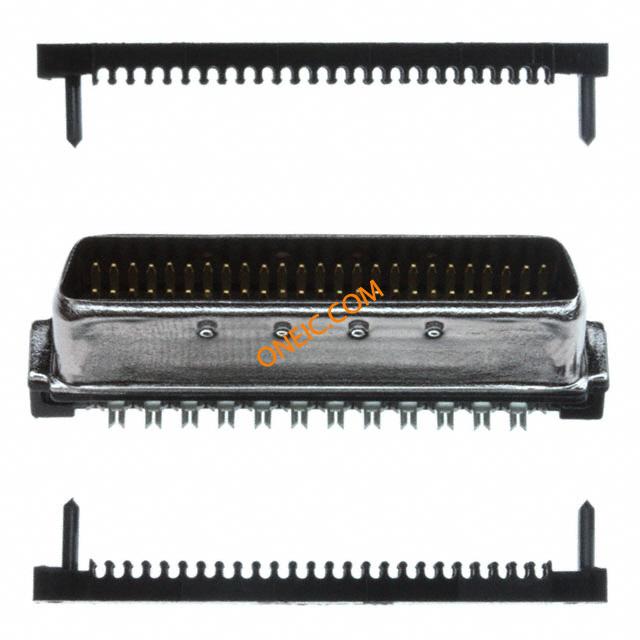

5750913-5

点击放大查看

5750913-5

制造商
TE Connectivity Ltd.
描述
Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) 50 50SR CABLE CONN KIT I/O Connectors CABLE PLUG 50P w/lacing covers blk Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 50Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

产品SCSI Connectors产品类别I/O Connectors
标准包装数量Trays工厂包装数量13

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压30V最大额定电流1A
最小供电电压30VAC

机械参数

颜色Black深度14.94 mm
间距1.27 mm高度7.44 mm
包装方式Bulk电缆类型Round Jacketed Cable
屏蔽类型Yes端接方式IDT
触头类型Signal第二连接器Without
安装类型Cable Mount外壳镀层Tin-Nickel Alloy
连接器类型IDC接触镀层Tin over Nickel
安装导轨Without安装样式Cable
排数2外壳材料（壳体）Steel
连接器样式D-Type触头材料Phosphor Bronze
线缆终端Unassembled壳体材料Thermoplastic
总长度40.11 mm面板安装类型Without
端接样式With触点数50
绝缘直径0.74 – 0.91 [0.029 – 0.036]位数50
外壳材料及表面处理Steel, Tin-Nickel Plated接触镀层厚度Flash
线规或范围 - mm²0.05-0.09² [30-28]外壳尺寸，连接器布局0.050 Pitch x 0.100 Row to Row

产品信息

备注Plug connector requires backshell kit for complete assembly类型SCSI
制动位Without连接器性别PL
系列Series III产品特性Shielded
产品子类型Connector连接类型Wire
端口数1 Port

环境参数

工作温度-55°C ~ 105°C结工作温度105C
