点击放大查看

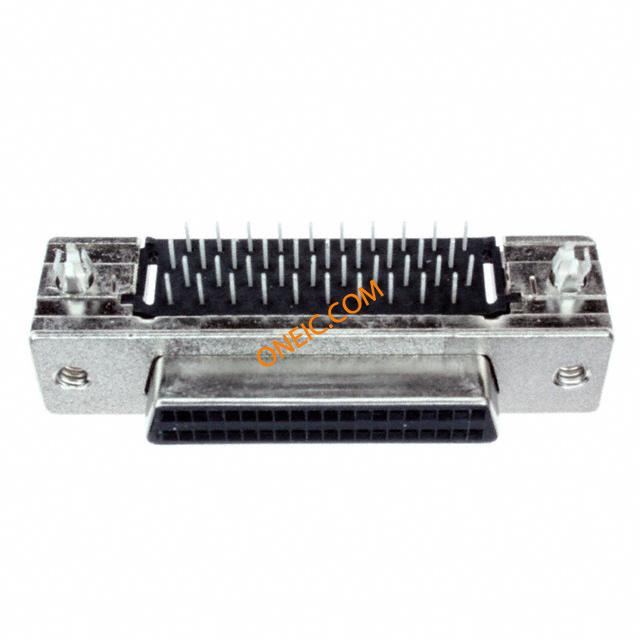

5787170-5
| 制造商 | |
| 描述 | Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD I/O Connectors 50 SCSI2/3 RA RCPT Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub RECEPTACLE, SCSI, R/A, 50W Conn;D-Sub;PCBSocket;50Pos;RTAng;IIISeries;Solder 50 50SR R/A RCPT ASSY,RDSN L/F |
| 分类 |
商业参数
| 产品 | SCSI Connectors | 产品类别 | I/O Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 深度 | 16.76 mm |
| 间距 | 2.54 mm | 高度 | 10.31 mm |
| 重量 | 0.001 | 镀层 | Tin over Nickel |
| 材料（通用） | Zinc | 包装方式 | Tube |
| 厚度 | 1.57 [0.062] | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Through Hole | 外壳镀层 | Nickel over Copper |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Tin over Nickel |
| 法兰特征 | Housing/Shell (4-40) | 安装导轨 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Type |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 52.45 mm | 端接样式 | Solder Pin |
| 触点数 | 50 | 接触件端接 | :Solder |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | Flash | 第一连接器安装类型 | :PCB |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 备注 | Female screwlocks must be used to mate with cable assemblies with male jackscre | 类型 | SCSI |
| 连接器性别 | RCP | 系列 | Series III |
| 产品特性 | Board Lock, Shielded | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
5749621-5
te connectivity / amp
Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50 POS CABLE PLUG CONN/COVER KIT .050 Series Cable Connectors (SCSI) CONN PLUG 50POS .050 IDC W/COV Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 50Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub PLUG, IDC, SCSI2, 50WAY Conn;D-Sub;CablePlug;50Pos;STR;IIISeries;IDC;30-28AWG Male Cable Connector SCSI 2 50, 5749621-5, TE Connectivity TE Connectivity Amplimite .050 III 系列 50 路 1.27mm节距 直角 电缆安装 公 SCSI 连接器, IDT 50 50S CABLE PLUG CONN/COV KIT

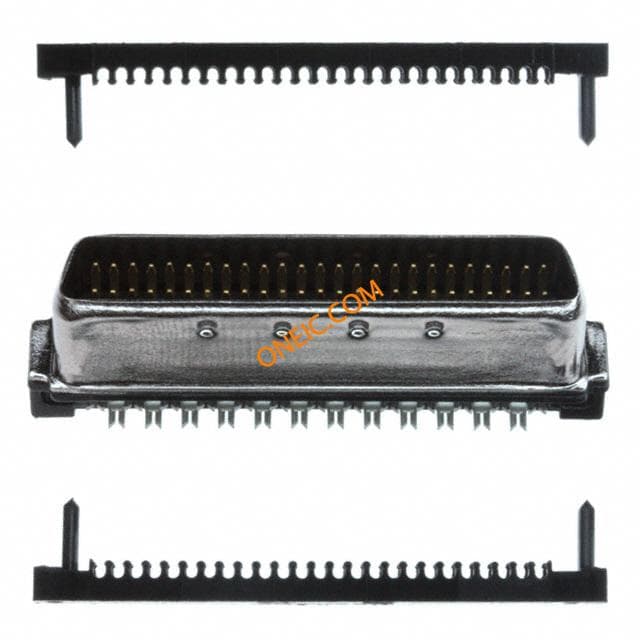

5750913-5
te connectivity / amp
Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port .050 Series Cable Connectors (SCSI) 50 50SR CABLE CONN KIT I/O Connectors CABLE PLUG 50P w/lacing covers blk Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 50Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub
1-5750913-5
te connectivity / amp
Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50 CABLE CONN KIT .050 Series Cable Connectors (SCSI) CONN PLUG 50POS .050SR 3PC GRAY Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 50Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, PLUG, 50POS, IDC/IDT Connector;SCSIplugkit;50positioninsulationdisplacementtermination TE Connectivity Amplimite .050 III 系列 50 路 1.27mm节距 直 电缆安装 公 SCSI 连接器, 压接, 快速闩锁 50 50SR CABLE CONN KIT

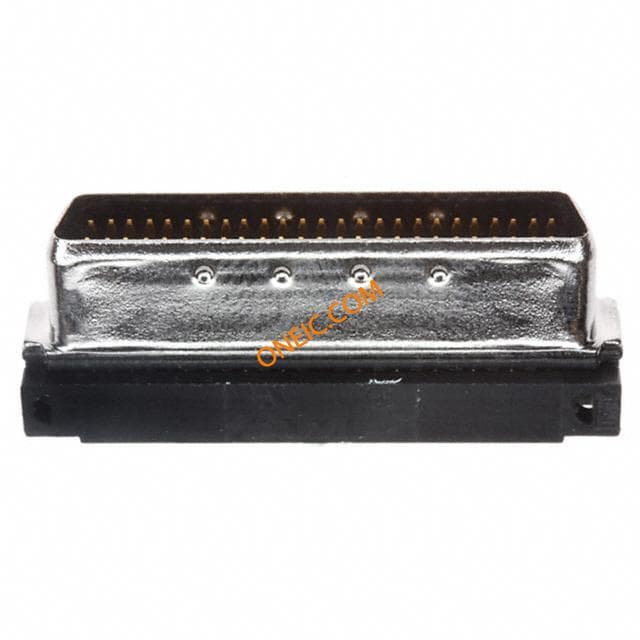

5749111-4
