点击放大查看

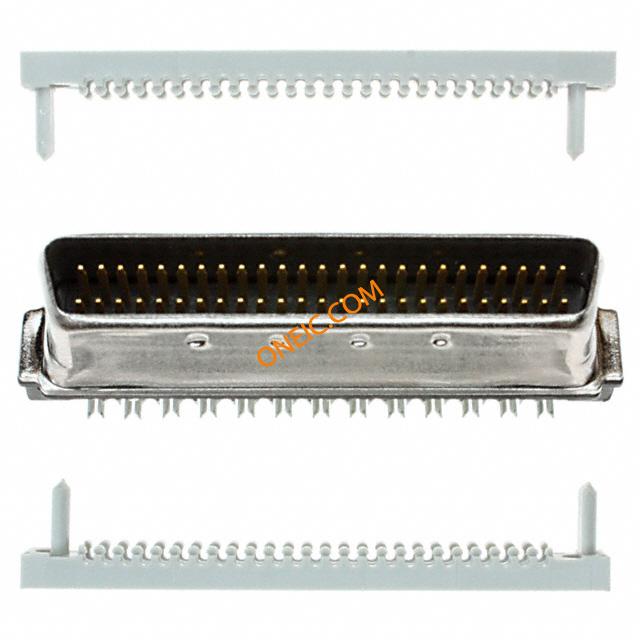

1-5750913-5
| 制造商 | |
| 描述 | Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50 CABLE CONN KIT .050 Series Cable Connectors (SCSI) CONN PLUG 50POS .050SR 3PC GRAY Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 50Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub SCSI CONNECTOR, PLUG, 50POS, IDC/IDT Connector;SCSIplugkit;50positioninsulationdisplacementtermination TE Connectivity Amplimite .050 III 系列 50 路 1.27mm节距 直 电缆安装 公 SCSI 连接器, 压接, 快速闩锁 50 50SR CABLE CONN KIT |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 468 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 最大额定电流 | 1A | 最小供电电压 | 30VAC |
机械参数
| 颜色 | Gray | 深度 | 14.94 mm |
| 间距 | 1.27 mm | 高度 | 7.44 mm |
| 重量 | 0.001 | 包装方式 | Tube |
| 电缆类型 | Round Jacketed Cable | 屏蔽类型 | Yes |
| 端接方式 | IDT | 触头类型 | Signal |
| 第二连接器 | Without | 安装类型 | Cable Mount |
| 外壳镀层 | Tin Nickel Alloy over Copper | 连接器类型 | IDC |
| 接触镀层 | Gold | 安装导轨 | Without |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Type |
| 触头材料 | Phosphor Bronze | 线缆终端 | Unassembled |
| 壳体材料 | Thermoplastic | 总长度 | 40.11 mm |
| 面板安装类型 | Without | 端接样式 | IDC |
| 触点数 | 50 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.74 â 0.91 [0.029 â 0.036] | 位数 | 50 |
| 外壳材料及表面处理 | Steel, Tin-Nickel Plated | 接触镀层厚度 | Flash |
| 线规或范围 - mm² | 0.05-0.09² [30-28] | 第一连接器安装类型 | :Cable |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 备注 | Plug connector requires backshell kit for complete assembly | 类型 | SCSI |
| 制动位 | Without | 连接器性别 | PL |
| 系列 | HD-20 | 产品特性 | Shielded |
| 产品子类型 | Connector | 连接类型 | Wire |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 结工作温度 | 105C |
文档与媒体
相关型号
787190-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors RECEPTACLE 50P R/A 560 .050 Series Board Mount Connectors CONN RCPT 50POS R/A .051 Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR R/A RCPT ASSY,REDESIGN
786155-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR VRT RCPT LTCH ACT PIN .050 Series Board Mount Connectors CONN RECEPT VERT 50POS .05 LATCH 50 50SR VRT RCPT,LTCH,ACT PIN 50 50SR VRT RCPT,LTCH,ACT PIN Search Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
787082-5
te connectivity / amp
Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube D-Sub Standard Connectors 50P R/A RECPT ASSY W/BOARDLOCKS .050 Series Board Mount Connectors CONN 50POS .05 AMPLMT RECP RTAGL Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR R/A RCPT ASSY,REDESIGN
786554-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1 Port D-Sub High Density Connectors 50 POS VERT RCPT ASY WITH ACTION PIN .050 Series Board Mount Connectors 50 50SR VRT RCPT,L,R,ACT PIN Conn D-Subminiature SKT 50 POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
5787190-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 SCSI2/3 RA RCPT .050 Series Board Mount Connectors CONN RCPT 50POS R/A .050 GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 50PCB Mount Angle = Right AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR R/A RCPT ASSY,RDSN L/F
1761028-3
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube D-Sub Standard Connectors 50 SCSI2/3 RA RCPT .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub RECEPTACLE, SCSI, R/A, 50W Conn;D-Sub;PCBSocket;50Pos;RTAng;IIISeries;Solder 50 50SR R/A RCPT ASSY,LEAD FRE
5749721-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 POS VERT RCPT ASY .050 Series Board Mount Connectors CONN RECEPT 50POS VERT .050 GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub CONNECTOR, RCPT 50WAY 1.27MM Conn;D-Sub;PCBSocket;50Pos;STR;IIISeries;Solder 50 50SR VERT RCPT ASSY
5786155-5
te connectivity / amp
Conn SCSI RCP 50 POS 2.54mm Press Fit ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR VERT RCPT LTCH ACT PN .050 Series Board Mount Connectors CONN RCPT VERT 50POS .050 LATCH .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR VRT RCPT,LTCH,ACT PIN
5786555-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 1.27mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR VERT RCPT FL TOP ACT PN .050 Series Board Mount Connectors 50 50SR VRT RCPT,FL TOP,ACT PN .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub

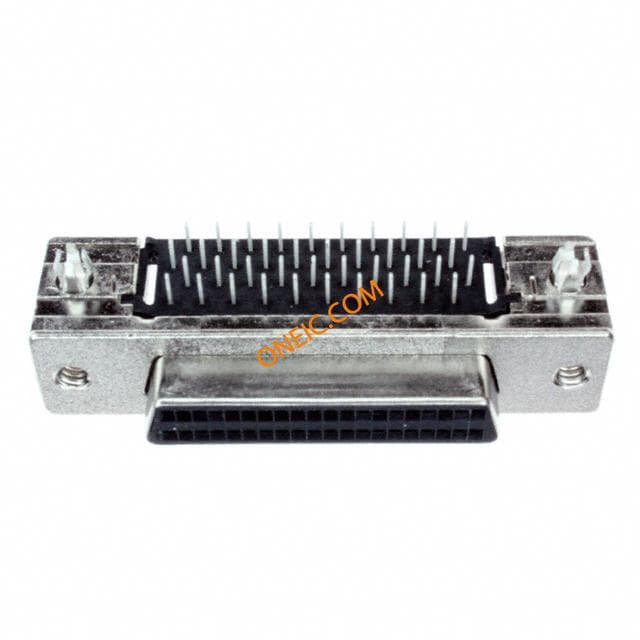

5787170-5
te connectivity / amp
Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD I/O Connectors 50 SCSI2/3 RA RCPT Conn SCSI RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub RECEPTACLE, SCSI, R/A, 50W Conn;D-Sub;PCBSocket;50Pos;RTAng;IIISeries;Solder 50 50SR R/A RCPT ASSY,RDSN L/F
5787362-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR R/A RCPT ASSM RDSN L/F .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD .050 Series Board Mount Connectors Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 50Right Angle OrientationThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR R/A RCPT ASSY,RDSN L/F
787362-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50SR R/A RCPT REDESIGN .050 Series Board Mount Connectors 50SR R/A RCPT,REDESIGN .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWithout Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
749070-5
te connectivity / amp
Conn D-Subminiature RCP 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR VERT RCPT 1260 .050 Series Board Mount Connectors 50 50SR VERT RCPT ASSY Conn D-Subminiature RCP 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorHousing Gender = Receptacle50 PositionsVertical Mount AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub
786136-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 50SR VERT RCPT ASSY .050 Series Board Mount Connectors CONN RCPT VERT .050 50POS GOLD .050 Series Board Mount Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR VERT RCPT ASSY
5787266-5
te connectivity / amp
Conn D-Subminiature RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors R/A RCPT ASSY 50 50SR .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD Conn D-Subminiature RCP 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub AMPLIMITE .050 Series 50 Position Right Angle Receptacle D-Sub Connector 50 50SR R/A RCPT ASSY,RDSN L/F
5787394-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50P 50SR R/A RCPT .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 50PCB Mount Angle = Right AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub TE Connectivity Amplimite .050 III 系列 1.27mm 节距 50 路 直角 通孔安装 PCB D-sub 连接器 插座 50 50SR R/A RCPT ASSY, LD FREE
787394-5
te connectivity / amp
Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50P R/A RECEPTACLE 1680 .050 Series Board Mount Connectors CONN 50POS .05 AMPLMT RECP RTAGL Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR R/A RCPT ASSY,REDESIGN

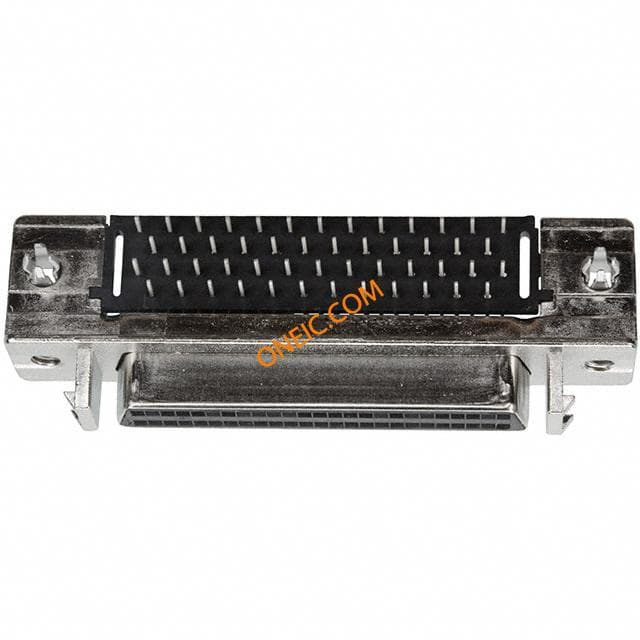

5787395-5
