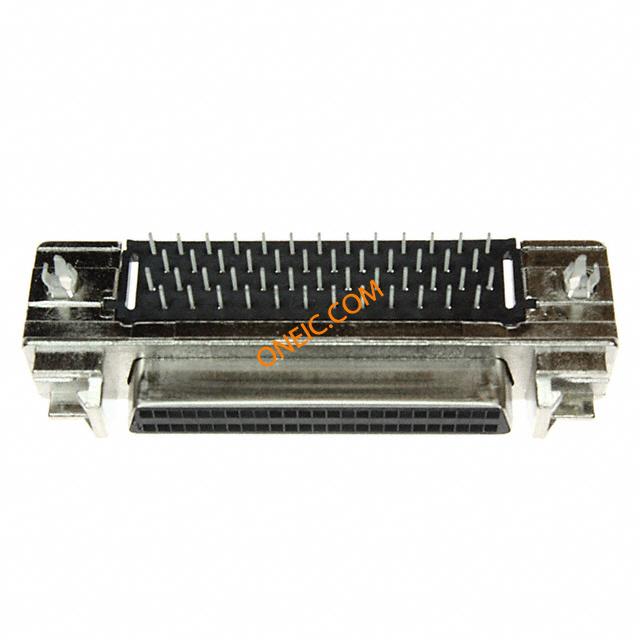

1761028-3
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube D-Sub Standard Connectors 50 SCSI2/3 RA RCPT .050 Series Board Mount Connectors CONN RECEPT 50POS R/A .050" GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub RECEPTACLE, SCSI, R/A, 50W Conn;D-Sub;PCBSocket;50Pos;RTAng;IIISeries;Solder 50 50SR R/A RCPT ASSY,LEAD FRE |
| 分类 |
商业参数
| 其他名称 | A31816 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 30V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 深度 | 16.87 mm |
| 间距 | 2.54 mm | 高度 | 10.31 mm |
| 重量 | 0.001 | 镀层 | Tin over Nickel |
| 材料（通用） | :Thermoplastic | 包装方式 | Tube |
| 屏蔽类型 | Yes | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 外壳镀层 | Bright Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (2-56); Latchblocks, Rails |
| 安装导轨 | With | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 锁定特性 | Latch Blocks |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 52.45 mm | 端接样式 | Solder |
| 触点数 | 50 | 接触件端接 | :Solder |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | Flash | 第一连接器安装类型 | :PCB |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | Series III | 产品特性 | Board Lock, Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
5749621-5
