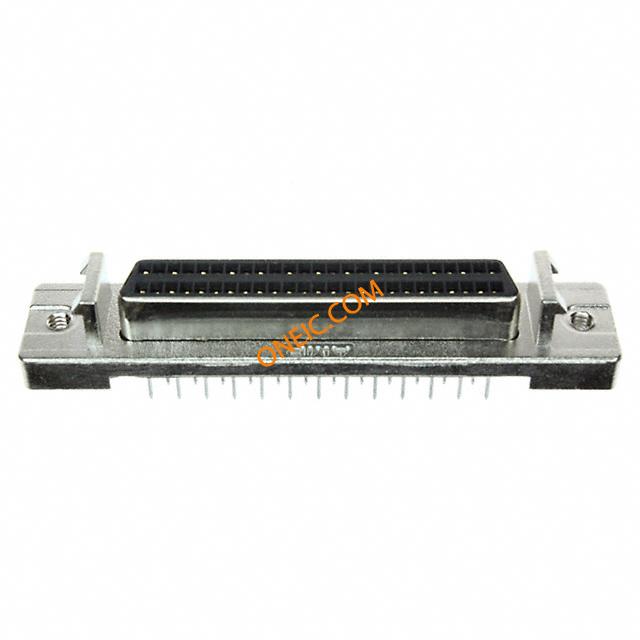

5749721-5
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 POS VERT RCPT ASY .050 Series Board Mount Connectors CONN RECEPT 50POS VERT .050 GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorReceptacleNumber of Positions = 50ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub CONNECTOR, RCPT 50WAY 1.27MM Conn;D-Sub;PCBSocket;50Pos;STR;IIISeries;Solder 50 50SR VERT RCPT ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite Series III | 额定电压 | 30V |
| 开关功能 | Without | 最大额定电流 | 1A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.009 | 包装方式 | Tube |
| 外壳尺寸 | :DD | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 安装类型 | Through Hole |
| 外壳镀层 | Tin over Copper | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (2-56); Latchblocks |
| 安装导轨 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Type | 锁定特性 | Latch Blocks |
| 本体材料 | :Steel | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 端接样式 | Solder |
| 触点数 | 50 | 接触件端接 | :Solder |
| 位数 | 50 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-22 | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
