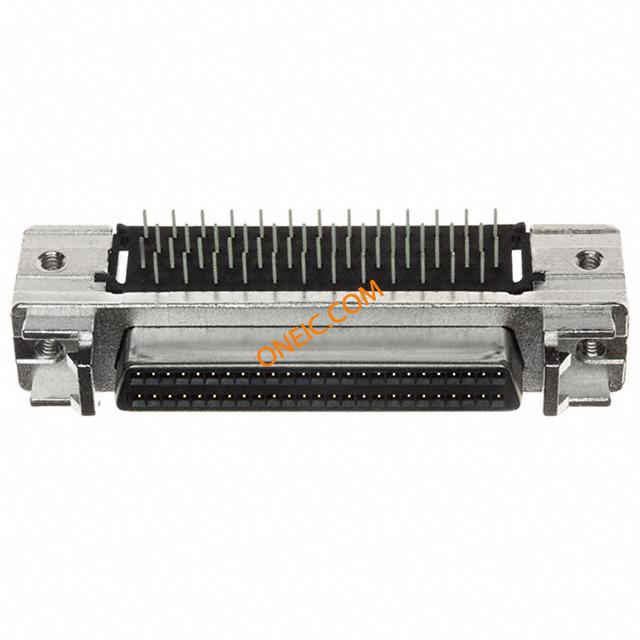

5787190-5
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port D-Sub Standard Connectors 50 SCSI2/3 RA RCPT .050 Series Board Mount Connectors CONN RCPT 50POS R/A .050 GOLD Conn D-Subminiature SKT 50 POS 2.54mm Solder RA Thru-Hole 50 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 50PCB Mount Angle = Right AngleThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub 50 50SR R/A RCPT ASSY,RDSN L/F |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | UL E28476 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 30 V | 开关功能 | Without |
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 轴径尺寸 | .012 |
| 外壳尺寸 | 2 | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 外壳表面处理 | 铜镀镍 | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 外壳镀层 | Bright Tin | 端子尺寸 | .109 |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (2-56); Latchblocks, Rails | 安装导轨 | With |
| 安装样式 | Through Hole | 排数 | 4 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 1.57 [0.062] |
| 连接器样式 | D-Type | 插入件材料 | 磷青铜 |
| 锁定特性 | Latch Blocks | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 框架材料 | 锌 |
| 包装数量 | 10 | 面板安装类型 | 通孔 - 焊接 |
| 接地凹痕 | With | 端接样式 | Solder |
| 触点数 | 50 | 位数 | 50 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 带有 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触件表面处理 - 配合 | 铜镀镍 |
| 端子柱长度 | 2.54 [0.100] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | 0.050 | 产品特性 | Shielded |
| 制造商全称 | AMP | 产品子类型 | Connector |
环境参数
| 工作温度 | - 55 C to + 105 C | 封装热阻 | 1.57 mm [ .062 in ] |
文档与媒体
