点击放大查看

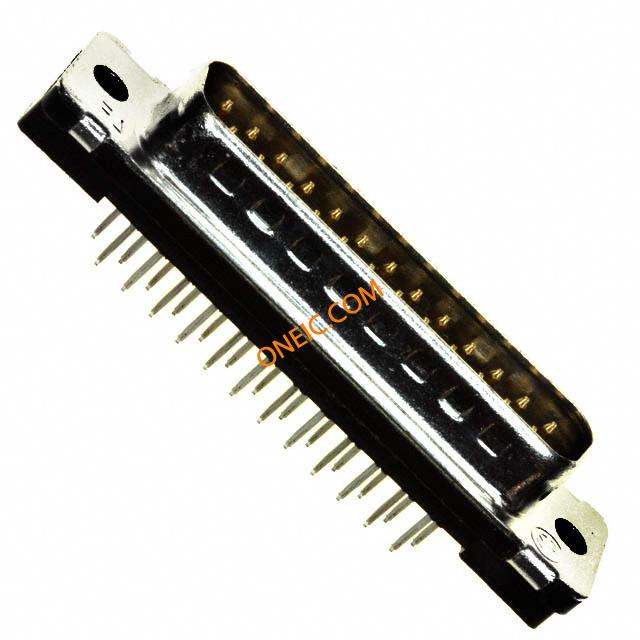

5745968-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25P V/MNT Standard Board Mount Connectors CONN D-SUB PLUG STR 25POS PCB AU Conn D-Subminiature PIN 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:Number of Positions = 25PlugPCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, PLUG 25 PLUG SP/FMS STD |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.005 | 包装方式 | Tube |
| 外壳尺寸 | 3 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | Without |
| 触点形状 | Round | 安装类型 | Vertical |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] | 连接器样式 | D-Sub |
| 本体材料 | :Metal | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | With | 端接样式 | Through Hole |
| 连接器颜色 | None | 触点数 | 25 |
| 接触件端接 | :Through Hole Vertical | 位数 | 25 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 4.32 [0.170] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 连接器性别 | Male |
| 系列 | HD-20 | 产品特性 | Grounding Indents |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
