首页产品分类连接器解决方案D-Sub连接器D-Sub连接器2-745495-0
2-745495-0

点击放大查看

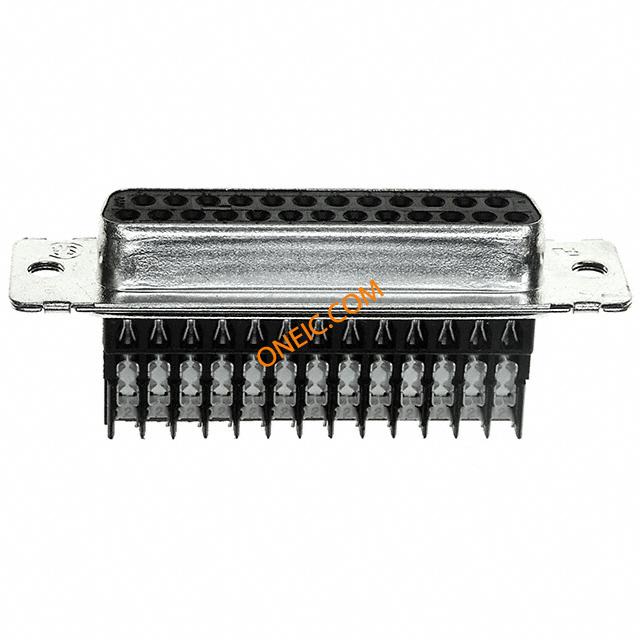

2-745495-0

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors B25S IDC 26-22AWG Standard Cable Connectors CONN D-SUB RECPT 25P 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC socket,25 way Conn D-Subminiature SKT 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 25ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 25POS, RCPT Conn;D-Sub;CableSocket;25Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell HDE20 Series 25 Position Socket Discrete Wire IDC D-Sub Connector TE Connectivity AMPLIMITE HDE-20 系列 2.76mm 节距 25 路 IDC D-sub 连接器, 插座, 钢外壳 25 HDE MS RCPT,22-26,LEAD FREE
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量84

合规参数

RoHSRoHS Compliant标准Insert,UL94V-0
海关税号85369010抗辐射加固No
无铅定义Not relevant for lead free process认证机构ULRecognized,ULListedandCSACertified
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDE-20 Series额定电压250V
最大额定电流Varies by Wire Gauge最小供电电压250VAC

机械参数

颜色Black深度21.72mm
间距2.76 mm宽度12.92mm
高度12.92 mm长度53.41mm
重量0.023包装方式Tray
电缆类型Discrete Wire, Round Jacketed Cable外壳尺寸3
导线线规26-22端接方式IDT
触点尺寸20触头类型Signal
第二连接器With安装类型Cable Mount
外壳镀层Tin行程角度Straight
连接器类型Insulation Displacement Crimp (IDC)接触镀层Gold
法兰特征Housing/Shell (Unthreaded)外壳涂层Tin
安装样式Wire排数2
外壳材料（壳体）Steel连接器样式D-Sub
插入件材料Thermoplastic锁定特性Mounting Holes
本体材料:Metal触头材料Phosphor Bronze
壳体材料Thermoplastic, Glass Filled总长度53.41 mm
主要材料D-Subminiature尺寸/外形53.41 x 12.92 x 21.72mm
接地凹痕Without端接样式Crimp
触点数25接触件端接:IDC / IDT
绝缘直径1.52 [0.060]位数25
外壳尺寸-插件Full Metal Shell外壳材料及表面处理Steel, Tin Plated
接触镀层厚度1µin (0.025µm)线规或范围 - mm²0.15 - 0.40 [26-22]
外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All connectors are preloaded. Individual conductor strands should be larger tha类型D-Subminiature
等级Standard连接器性别SKT
系列HDE-20 (IDC)制造商全称HDE-20
产品子类型Connector端口数1 Port
应用细节Commercial

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
2-745495-0?RQPN=2-745495-0
PDF 文档
1639165.pdf
