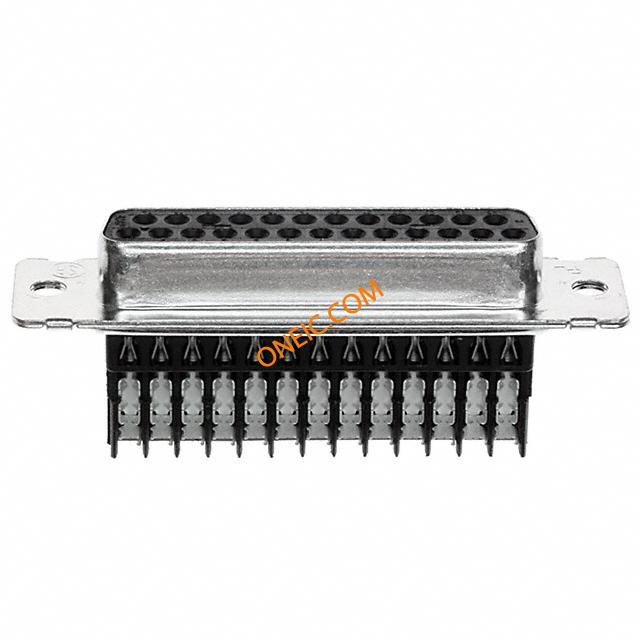

1-745495-9

点击放大查看

1-745495-9

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors 25 HDE MS RCPT 20-22 Standard Cable Connectors CONN D-SUB RECPT 25P 20-22AWG AU Conn D-Subminiature SKT 25 POS 2.76mm Crimp ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 25ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDE20 Series 25 Position Socket Discrete Wire IDC D-Sub Connector 25 HDE MS RCPT,20-22,LEAD FREE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量84

合规参数

RoHSRoHS Compliant防护类型UL 94V-0
抗辐射加固No无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗刺破式压接 (IDC)
最大额定电流Varies by Wire Gauge最小供电电压250VAC

机械参数

颜色Black深度21.72 mm
间距2.76 mm高度12.92 mm
外形尺寸(长x宽)3锁定类型带有
包装方式Tray屏蔽是
电缆类型Discrete Wire, Round Jacketed Cable外壳尺寸3
导线线规.4 – .6 mm² [ 22 – 20 AWG ]端接方式Crimp
触点形式Signal触点尺寸20
触头类型Signal外壳表面处理锡
第二连接器With安装类型Cable Mount
外壳镀层Tin端子尺寸20
连接器类型Insulation Displacement Crimp (IDC)接触镀层Tin over Nickel
法兰特征Housing/Shell (Unthreaded)安装样式Cable
排数2外壳材料（壳体）Steel
连接器样式D-Sub插入件材料Thermoplastic
锁定特性Mounting Holes触头材料Phosphor Bronze
壳体材料Thermoplastic, Glass Filled总长度53.41 mm
安装特性无包装数量84
接地凹痕Without端接样式插座
触点数With绝缘直径1.52 [0.060]
位数25外壳尺寸-插件Full Metal Shell
外壳材料及表面处理Steel, Tin Plated接触镀层厚度30µin (0.76µm)
线规或范围 - AWG22 – 20线规或范围 - mm²0.4 - 0.6 [22-20]
外壳尺寸，连接器布局3 (DB, B)

产品信息

备注All connectors are preloaded. Individual conductor strands should be larger tha类型D-Subminiature
等级Standard连接器性别SKT
系列HDE-20 (IDC)预装是
产品子类型Connector端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
1-745495-9?RQPN=1-745495-9
