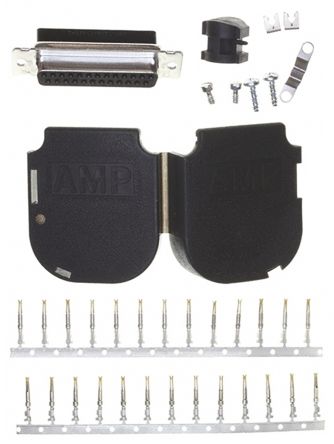

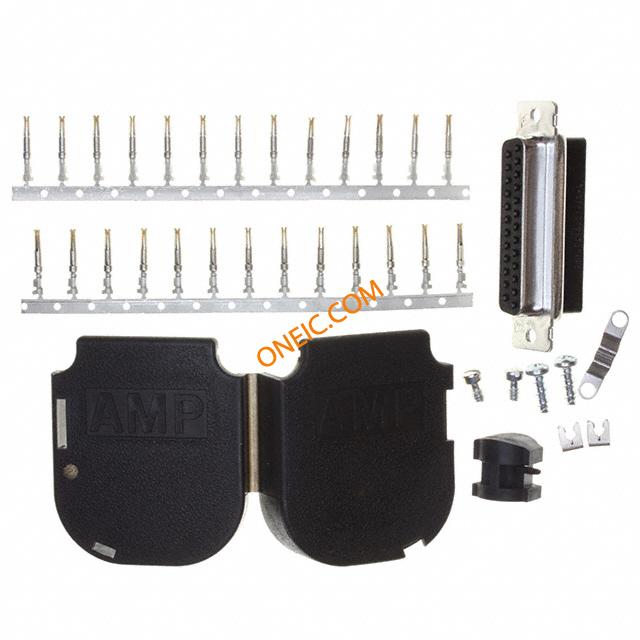

1-749812-1

点击放大查看

1-749812-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 25 POS Crimp ST Cable Mount 25 Terminal 1 Port Bulk D-Sub Standard Connectors KIT RCPT 15P HDP-20 Standard Cable Connectors CONN DSUB RCPT 25POS CRIMP GOLD Standard Cable Connectors Product Highlights:Cable Connector and ClampProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25Not ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TE Connectivity HDP-20系列 25路 直 压接式 D-sub 连接器, 插座 KIT,RCPT,15P,HDP-20
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格1产品类别D-Sub Standard Connectors
标准包装数量Bulk工厂包装数量100

合规参数

RoHSRoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250V连接器阻抗压接
最大额定电流Varies by Wire Gauge

机械参数

颜色Black深度12.55mm
宽度17.9mm长度53.04mm
外形尺寸(长x宽)3材料（通用）Stainless Steel
包装方式Bulk屏蔽否
壳体颜色黑色出线方向Straight(180°)/120°
外壳尺寸3导线线规.2 – .56 mm² [ 24 – 20 AWG ]
方向直屏蔽类型No
端接方式Crimp触点尺寸20
触头类型Signal外壳表面处理铜镀锡
第二连接器With外壳颜色Black
安装类型Free Hanging (In-Line)外壳镀层Tin over Copper
端子尺寸20电缆材料Polypropylene
连接器类型Crimp Snap接触镀层Tin over Nickel
法兰特征Housing/Shell (Unthreaded)排数2
螺丝材料Steel外壳材料（壳体）Steel
绑带材料Stainless Steel连接器样式D-Sub
锁定特性Mounting Screws, Retainer Clip触头材料Phosphor Bronze
壳体材料Nylon, Polyester GF包装数量Bulk
尺寸/外形53.04 x 17.9 x 12.55mm电缆端接方式One-Piece Quick Snap
接地凹痕Without触点数With
绝缘直径4.57 – 11.68 [0.180 – 0.460]位数25
外壳尺寸-插件Full Metal Shell衬套/护套类型Without
外壳材料及表面处理Steel, Tin Plated接触镀层厚度Flash
螺钉材料 - 镀层Zinc外部壳体材料Polypropylene
线规或范围 - AWG0.2 - 0.56 [24-20]触点材料 - 镀层尼龙 GF
控制侧电缆固定器With外壳尺寸，连接器布局3 (DB, B)

产品信息

等级Standard连接器性别Receptacle
系列HDP-20 (Crimp Snap)产品特性Backshell (Dual Exit), Strain Relief
产品子类型Cable Connector and Clamp其他规格4.57 – 11.68 mm [ .18 – .46 in ]

环境参数

工作温度-55°C ~ 105°C
