点击放大查看

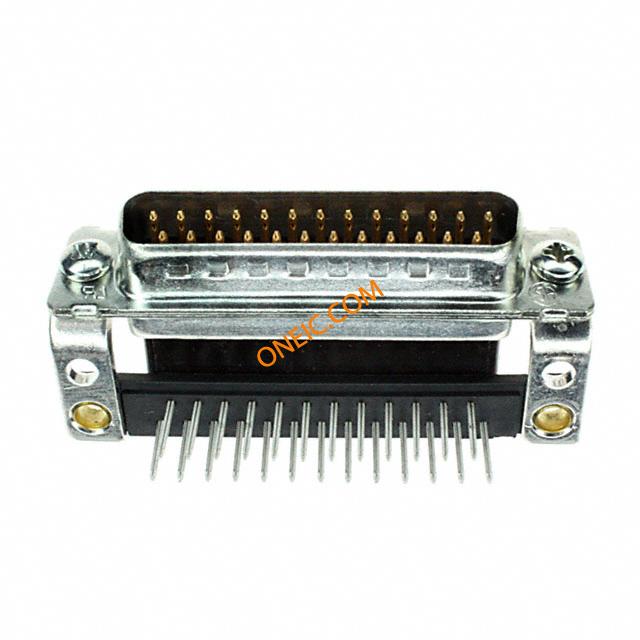

5745436-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.74mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25 POS PLUG D-SUB Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS Standard Board Mount Connectors Product Highlights:25 PositionsHousing Gender = PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 25 PLUG RA/MS 454 |
| 分类 |
商业参数
| 标准包装规格 | 70 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 70 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 连接器阻抗 | 安装螺钉, 安装螺钉 | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 包装方式 | Tray | 屏蔽 | 否 |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 外壳尺寸 | 3 | 端接方式 | Solder |
| 触头类型 | Signal | 柱间距 | .108 |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 触点形状 | Square | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Mating Side; Standard Screws |
| 接地类型 | Without | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.125 [3.18] | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Screws |
| 外形（宽 x 高） | Standard | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA), Nylon, Glass Filled | 安装特性 | 安装孔 |
| 包装数量 | 70 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | With |
| 外形尺寸 长x宽x高 | 11.53 [.454] | 端接样式 | Solder |
| 连接器颜色 | None | 外径 | .64 mm [ .025 in ] |
| 触点数 | 25 | 位数 | 25 |
| 外壳尺寸-插件 | Full Metal | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 5.59 [0.220] |
| 接触镀层厚度 | Flash | 触点材料 - 镀层 | 热塑性 |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | All connectors are preloaded with size 20 DF posted contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents, Mounting Brackets | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | 其他规格 | 是 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 3.18 mm [ .125 in ] |
