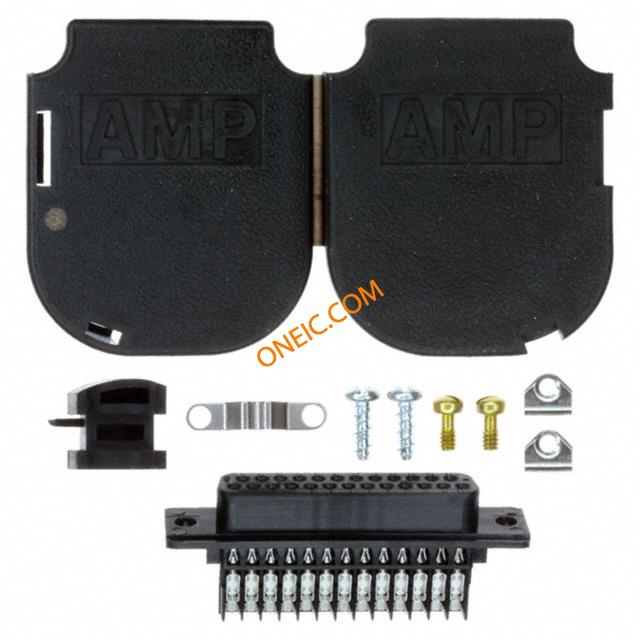

749813-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS IDT RA Cable Mount 25 Terminal 1 Port Bulk D-Sub Standard Connectors KIT RCPT 25P HDE Standard Cable Connectors CONN DSUB RCPT 25POS IDC GOLD KIT,RCPT,25P,HDE KIT,RCPT,25P,HDE Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | Varies by Wire Gauge |
机械参数
| 颜色 | Black | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 出线方向 | 180°, 120° |
| 外壳尺寸 | 3 | 屏蔽类型 | No |
| 端接方式 | IDC, Discrete Wire | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Tin over Copper | 电缆材料 | Polypropylene |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Tin |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 2 |
| 螺丝材料 | Steel | 外壳材料（壳体） | Steel |
| 绑带材料 | Stainless Steel | 连接器样式 | D-Sub |
| 锁定特性 | Mounting Holes | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon, Polyester GF | 包装数量 | Bulk |
| 电缆端接方式 | One-Piece Quick Snap | 接地凹痕 | Without |
| 触点数 | With | 绝缘直径 | 4.57 â 11.68 [0.180 â 0.460] |
| 位数 | 25 | 外壳尺寸-插件 | All Plastic |
| 衬套/护套类型 | Without | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 螺钉材料 - 镀层 | Zinc |
| 外部壳体材料 | Polypropylene | 线规或范围 - AWG | 0.15 - 0.40 [26-22] |
| 控制侧电缆固定器 | With | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 等级 | Standard | 连接器性别 | Receptacle |
| 系列 | HDE-20 (IDC) | 产品特性 | Backshell (Dual Exit), Strain Relief, Retaining Hardware |
| 制造商全称 | AMP | 产品子类型 | Connector Kit |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
