点击放大查看

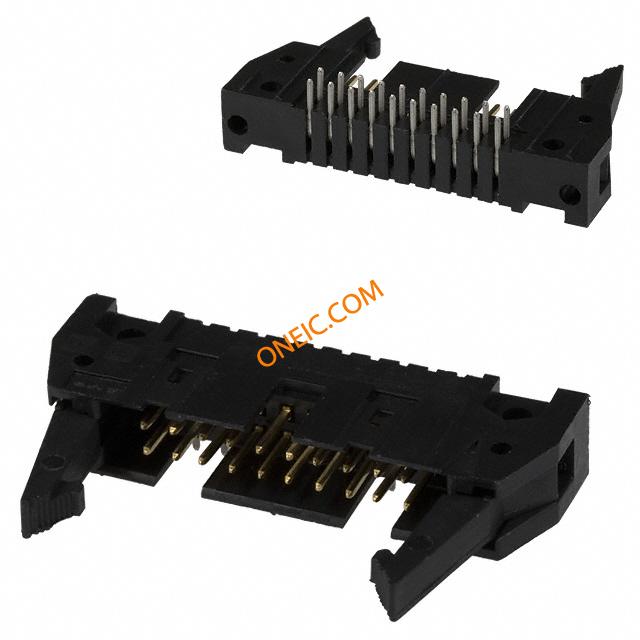

5499786-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 20POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 20 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,20POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 20P RA LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 48 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 最大额定电流 | 1A |
| 绝缘电阻 | :1Gohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 27.3 mm |
| 间距 | 2.54 mm | 高度 | 8.53 mm |
| 长度 | :44.8mm | 重量 | 0.006 |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :1.27mm |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch, Long/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 1.57 [0.062] | 锁定特性 | Latch |
| 外形（宽 x 高） | Standard | 触头材料 | Brass, Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 44.7 mm |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Black | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :Solder |
| 位数 | 20 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 2.79 [0.110] | 接触镀层厚度 | 15µin (0.38µm) |
| 安装面板厚度 | :34.54mm | 第一连接器安装类型 | :Right Angle |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 5499786 | 极性 | :Bump/Clip |
| 制造商全称 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | With | 加载位置数 | All |
环境参数
| 插拔次数 | :50 | 温度额定值 | Standard |
| 工作温度 | -65C to 105C | ||
文档与媒体
相关型号
1658621-4
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings CNTR PLRZD RECPT 20P NOVO Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 20POS W/POL 15 GOLD 20way polarised skt w/o strain relief Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 20WAY AMP-LATCHNOVOReceptacle,20Pos.,Center&MilitaryPolarization,.100X.100 Plug; IDC; female; PIN:20; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 20P, 1658621-4, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 20 NOVO MIL/CTR 15DP,LEAD FREE
5499922-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 20 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 20WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,20POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 20P VERT LG LAT
1-1658526-3
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS VERT GOLD W/SR 20 Way HE10 Skt w/ Strain Relief Headers & Wire Housings FEMALE SOCKET Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,20POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 609-2041LF FEM SOCKT,LEAD FREE
2-1658527-3
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 622-2030LF=FSKT IDC S 20 30AU PL Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS .100 622 SERIES Ribbon cable conn.rcpt.20way,2.54mm,blue Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY RIBBONCONN.RCPT.20WAY TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2030LF=FSKT IDC S 20 30AU
1658624-4
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS POLAR GOLD Headers & Wire Housings .1CL IDC REC 2X10P D/P 30AU Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 20 NOVO DUAL 30DP, LEAD FREE
1658623-4
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 20POS GOLD AMP-LATCHNOVORibbonCableConnector Headers & Wire Housings .1CL IDC REC 2X10P MIL 30AU Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM AMP-LATCHNOVORibbonCableConnector,Receptacle,20Pos.,.100CL,Black 20 NOVO MIL 30DP, LEAD FREE
1658620-4
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 20POS 15 GOLD Receptacle 15 way IDC Amp-Latch Headers & Wire Housings MLTRY PLRZD RECPT 20 NOVO Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,20POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 20路 2.54mm节距 母 IDC 连接器 , 电缆安装 20 NOVO MIL 15DP, LEAD FREE
1-1658526-2
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS VERT GOLD Headers & Wire Housings IDC RCPT 20P Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM 609-2030LF FEM SOCKT,LEAD FREE

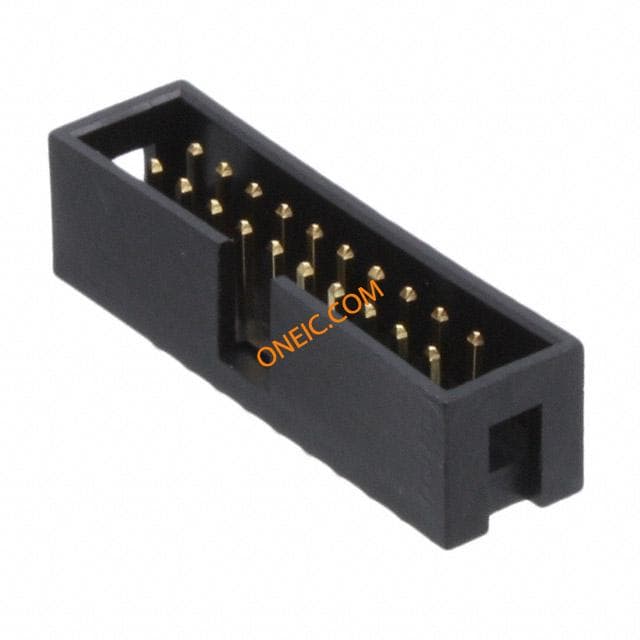

2-1634688-0
