1658624-4

点击放大查看

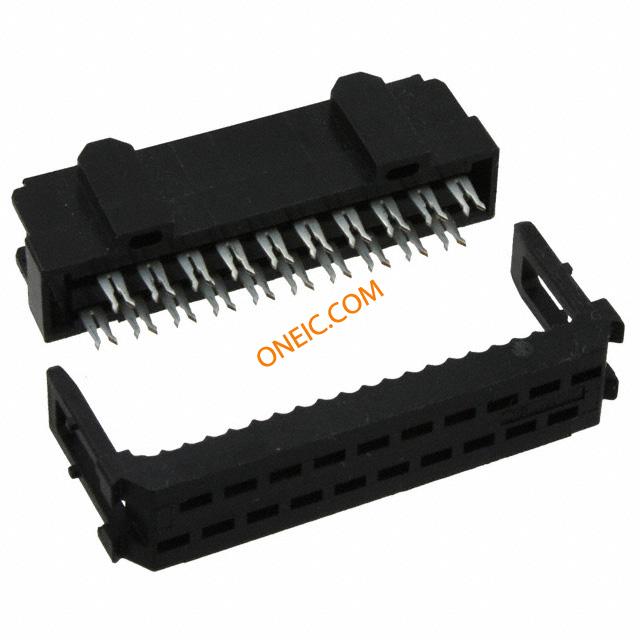

1658624-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS POLAR GOLD Headers & Wire Housings .1CL IDC REC 2X10P D/P 30AU Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 20 NOVO DUAL 30DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH其他名称16586244
产品类别Headers & Wire Housings标准包装数量Rail / Tube
工厂包装数量900

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
接触电阻15 mohm输入电阻5000
连接器阻抗刺破式压接 (IDC)最大额定电流1 A
最小供电电压250VAC连接器类型 - 电压输入音叉

机械参数

颜色Black深度7.44 mm
间距2.54 mm宽度7.49 mm [ .2949 in ]
高度15.97 mm长度29.97 mm [ 1.1799 in ]
底座类型不带包装方式Tube
导线类型Ribbon Cable壳体颜色黑色
出线方向Without电缆类型Ribbon Cable
导线线规28排间距0.100" (2.54mm)
端接方式IDT触点形式Forked
触头类型Forked引脚间距0.100" (2.54mm)
极化Dual Polarizing Bar第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel法兰特征否
安装样式Cable排数2
驱动力不带插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度29.97 mm安装特性Without
包装数量50面板安装类型通孔 - 焊接
尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规电缆端接方式IDC
端接样式IDC第一连接器类型插针接头
配接方向With触点数20
绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]位数20
触头长度-柱信号（数据）安装孔直径带有
接触件表面处理 - 配合锡接触镀层厚度30µin (0.76µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP-LATCH
产品特性Feed Through, Polarizing Key极性带有
主要用途Feed Through, Polarizing Key产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
DigiKey可编程不带输出配置Free Hanging (In-Line)
应用细节Wire-to-Board
