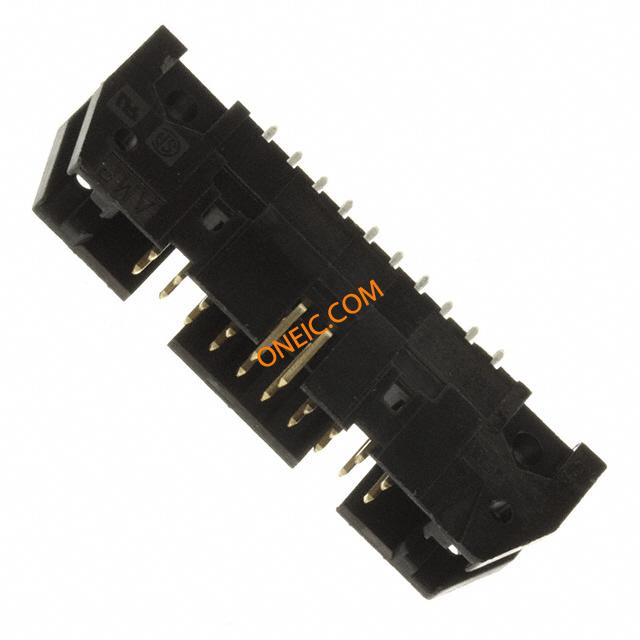

5102153-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 GOLD Header,UniversalEjectionPinHeader Headers & Wire Housings 20 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM Header;UniversalEjectionPinHeader;20;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 20P VERT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 70 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 最大额定电流 | 1A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 13.94 mm |
| 长度 | 1.76in | 重量 | 0.005 |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 电路板厚度 | 1.57 [0.062] |
| 外形（宽 x 高） | Standard | 触头材料 | Brass, Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 34.54 mm |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :Through Hole Vertical |
| 位数 | 20 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 产品子类型 | Headers |
| 其他规格 | Without | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | 工作温度 | +105°C |
