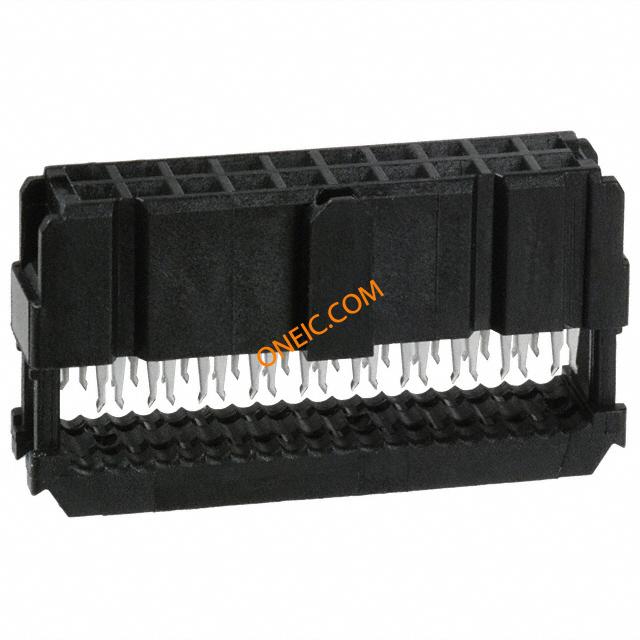

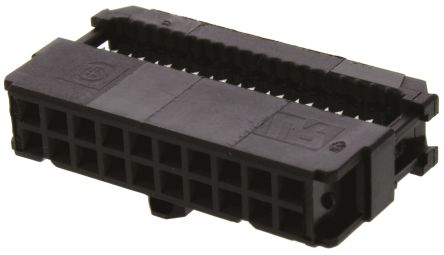

1658621-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings CNTR PLRZD RECPT 20P NOVO Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 20POS W/POL 15 GOLD 20way polarised skt w/o strain relief Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 20WAY AMP-LATCHNOVOReceptacle,20Pos.,Center&MilitaryPolarization,.100X.100 Plug; IDC; female; PIN:20; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 20P, 1658621-4, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 20 NOVO MIL/CTR 15DP,LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 900 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Novo Series | 接触电阻 | :15mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1A |
| 最小供电电压 | 250VAC | 触点额定电流 | :1A |
机械参数
| 颜色 | Black | 深度 | 7.49 mm |
| 间距 | 2.54 mm | 高度 | 15.97 mm |
| 重量 | 0.004 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 柱间距 | :2.54mm |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | NOVO |
| 接触镀层 | Gold Over Nickel | 安装样式 | Free Hanging |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 29.97 mm | 安装特性 | Without |
| 包装数量 | 50 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 端接样式 | Solder Pin |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :IDC / IDT |
| 位数 | 20 | 中心触点材料 | 2.54 x 2.54 [.100 x .100] |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :Cable | 第一连接器安装特征 | 2x10 |
产品信息
| SPG | 50 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | AMP-LATCH NOVO |
| 产品特性 | Feed Through, Polarizing Key | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Ribbon Cable | 单元数量 | 1 |
| 带调制解调器控制 | Yes | 应用细节 | Wire-to-Board |
环境参数
| 插拔次数 | :75 | 工作温度 | +105°C |
文档与媒体
相关型号
5103308-5
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 20POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 20P low profile Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM Conn;Rect;Header;Pin;20;AMP-LATCH;0.100x0.100in.; Pin header DIN 41651 20P, 2-1634688-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 20P VERT BLACK
5104338-4
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 20POS GOLD Headers & Wire Housings 100X100 HDR 2X010P VERT LOW PROFILE Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM LOPROHTKNKDDRVHD,A/LLOWPROHDR20PVERTHT TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 20P VERT HT
1761608-7
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 20POS Headers & Wire Housings IDC LOW PRO HDR 20P VERT SHT LAT BLK Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,20POS,LOWPROFILE,PCB,VERTICAL,BLACK IDC LOW PRO HDR 20P VERT SHT L
5103310-5
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X010P R/A LOW PROFILE Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A 20WAY Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;20;Gold TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 20P RA BLACK
5102160-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 20POS .100 GOLD Header,UniversalEjectionPinHeader Header; Universal Ejection Pin Header; 20; 0.100 x 0.100 in.; Right Angle (PCB) Headers & Wire Housings 20 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;20;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 20P, 5102160-4, TE Connectivity A/L UNIV HDR 20P RA
5103311-5
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 100X100 HDR 2X010P R/A LPRO CONN HEADER LOPRO R/A 20POS GOLD Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM Pin header DIN 41651 20P, 5103311-5, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 20P RA BLACK
5499922-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 20 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 20WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,20POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 20P VERT LG LAT

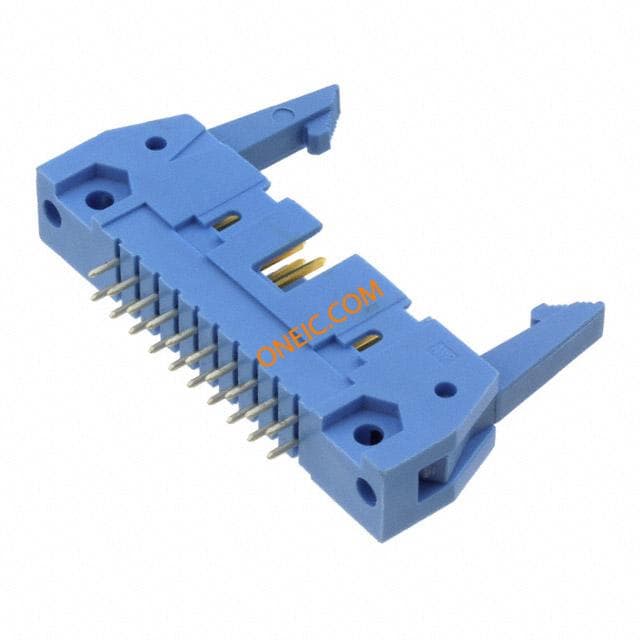

2-5499206-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 20POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 20P VERT LGE LATCH Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 20waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 20P VERT LG LAT B
5111448-4
te connectivity / amp
Conn IDC Connector M 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 20POS UNIV I/O W/EARS Ribbon cable conn.male,20 way,2.54mm,blk Headers & Wire Housings 020 UNIV I/O 30DP SLOT Conn IDC Connector M 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 20PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 20WAY RIBBONCONN.MALE,20WAY TE Connectivity AMP-LATCH 系列 2行 20路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 020 UNIV I/O 30DP SLOT
5499786-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 20POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 20 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,20POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 20P RA LG LAT
2-5499376-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 20POS R/A .100 GOLD A/L UNIV HDR 20P RA SHT LAT BLUE
5499141-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 20POS .100 GOLD Headers & Wire Housings 20 POS HDR 30AU R/A W/LONG LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 20P RA LG LAT
5102156-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X010P VRT Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 GOLD Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 20P VERT

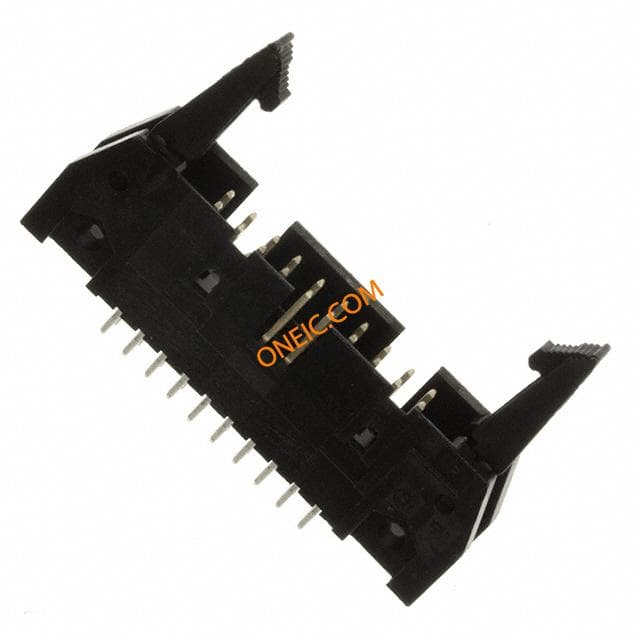

5499923-4
