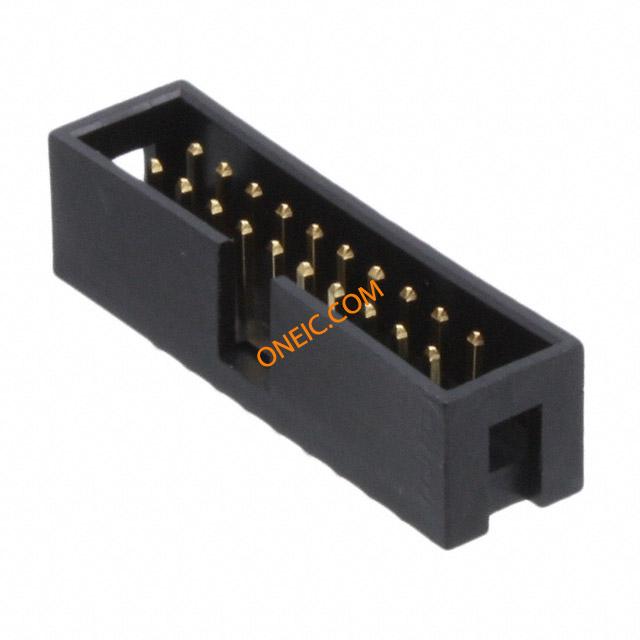

2-1634688-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 20POS .100 VERT GOLD TE Connectivity 2-1634688 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR STRAIGHT 20P Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile20 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 20WAY 20way2rowverticalthroughholeheader |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 3000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 开关功能 | Unlatched |
| 介电强度 | :500V | 最大额定电流 | 1A |
| 绝缘电阻 | 5000 MOhms | ||
机械参数
| 颜色 | Black | 深度 | 9 mm |
| 间距 | 2.54 mm | 高度 | 8.95 mm |
| 重量 | 0.0261 | 材料（通用） | :Glass Filled Thermoplastic |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 33.05 mm |
| 主要材料 | PCB | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 触点数 | 20 | 接触件端接 | :Through Hole Vertical |
| 位数 | 20 | 接触长度 - 配合 | 0.228" (5.80mm) |
| 端子柱长度 | 3.02 mm | 接触镀层厚度 | 10µin (0.25µm) |
| 第一连接器安装类型 | :Straight | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 2-1634688 | 制造商全称 | 1634688Series |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 40 C to + 105 C | ||
