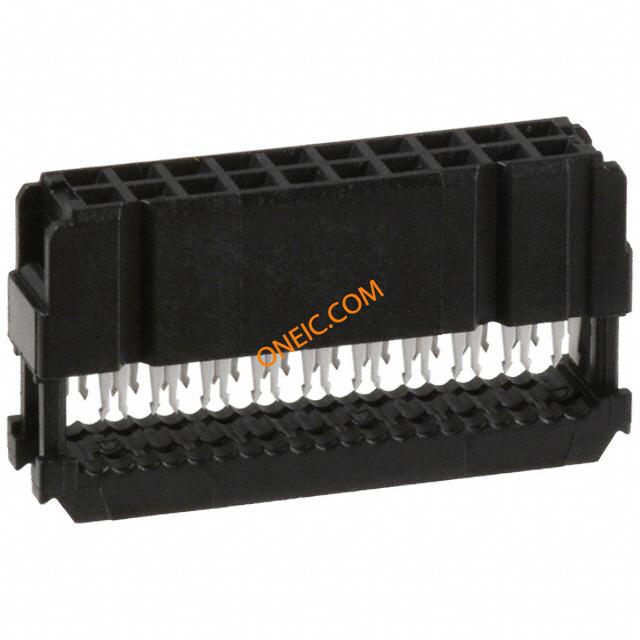

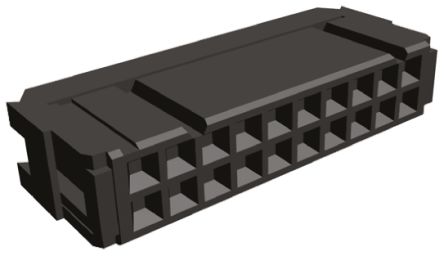

1658620-4

点击放大查看

1658620-4

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 20POS 15 GOLD Receptacle 15 way IDC Amp-Latch Headers & Wire Housings MLTRY PLRZD RECPT 20 NOVO Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 20ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,20POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 20路 2.54mm节距 母 IDC 连接器 , 电缆安装 20 NOVO MIL 15DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1080

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac接触电阻15 mohm
最大额定电流1A最小供电电压250VAC

机械参数

颜色Black深度6.09 mm
间距2.54 mm高度15.97 mm
重量0.003包装方式Tube
导线类型Ribbon Cable出线方向Without
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel安装样式Cable
排数2触头材料Phosphor Bronze
壳体材料Thermoplastic总长度29.97 mm
安装特性Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数20
接触件端接:IDC / IDT位数20
中心触点材料2.54 x 2.54 [.100 x .100]接触镀层厚度15µin (0.38µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP LATCH Novo
产品特性Feed Through产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
应用细节Wire-to-Board

环境参数

工作温度-65C to 105C
