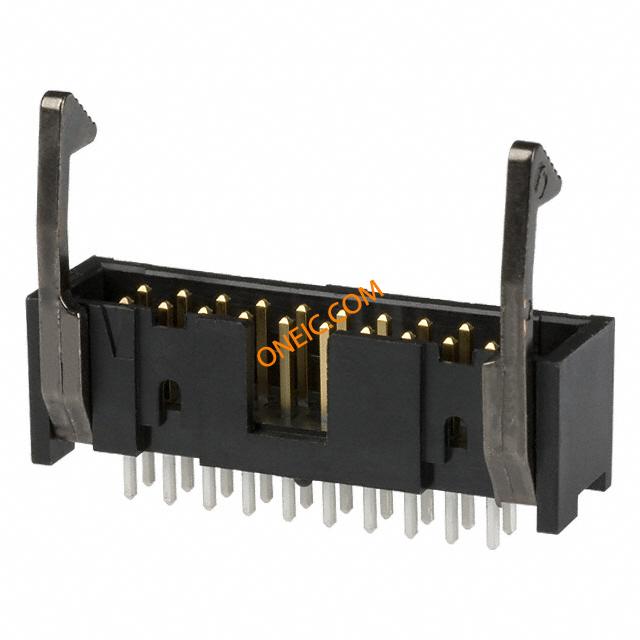

1761608-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 20POS Headers & Wire Housings IDC LOW PRO HDR 20P VERT SHT LAT BLK Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,20POS,LOWPROFILE,PCB,VERTICAL,BLACK IDC LOW PRO HDR 20P VERT SHT L |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Ejection | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 18.49 mm | 重量 | 0.004 |
| 包装方式 | Tube | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Pin Header |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch, Short/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 3.81 [0.150] | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :Through Hole Vertical |
| 位数 | 20 | 接触长度 - 配合 | 0.237" (6.02mm) |
| 端子柱长度 | 2.60 [0.102] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
