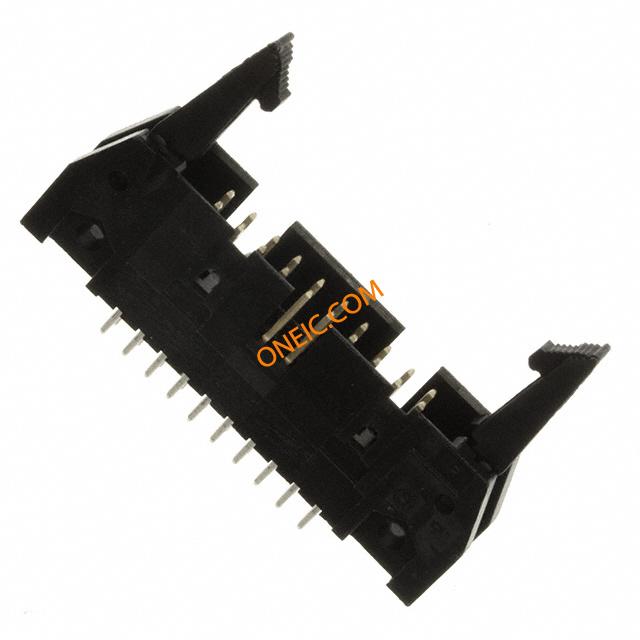

5499923-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X010P VERT LOW PRO W/EJECT Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,20POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 20P VERT LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 36 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 最大额定电流 | 1A |
| 最小输入电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.53 |
| 间距 | 2.54 mm | 高度 | 27.31 |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 紧固类型 | Latch, Long/Eject Hooks | 排数 | 2 |
| 封装形式 | 4-Sided | 电路板厚度 | 3.18 [0.125] |
| 锁定特性 | Latch | 外形（宽 x 高） | Standard |
| 触头材料 | Phosphor Bronze|Brass | 壳体材料 | Nylon|Polyester |
| 总长度 | 44.7 | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :Through Hole Vertical |
| 位数 | 20 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 端子柱长度 | 3.94 [0.155] | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | ||
文档与媒体
相关型号
