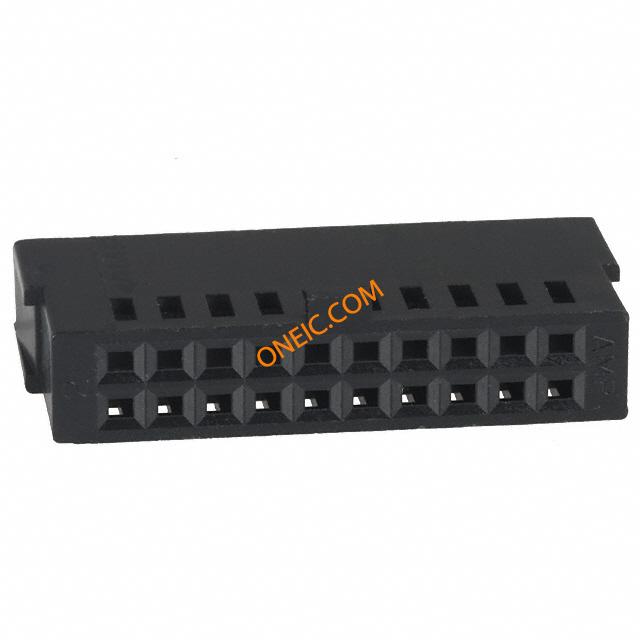

487223-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 020 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 20 HSG RCPT 100CL DR Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Standard20 PositionsNumber of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector HOUSING, RECEPTACLE, FFC, 2.54MM, 20WAY |
| 分类 |
商业参数
| 其他名称 | 4872235 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | Yes | ||
电气参数
| 额定电压 | 300V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 极化 | Center | 第二连接器 | Without |
| 安装类型 | Straight | 连接器类型 | Standard |
| 接触镀层 | :- | 排数 | 2 |
| 连接器用途 | Receptacle | 触头材料 | :- |
| 触点位置 | :Single Side | 壳体材料 | Thermoplastic |
| 安装特性 | Without | 面板安装类型 | Without |
| FFC/FCB厚度 | 0.05-0.13mm | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :- |
| 位数 | 20 | 中心触点材料 | 2.54 [0.100] |
产品信息
| 备注 | Use Extraction Tool No. 91093-1 for round wire contacts. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Locking Ramp | 产品子类型 | Housing |
| 连接类型 | FFC Cable | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
