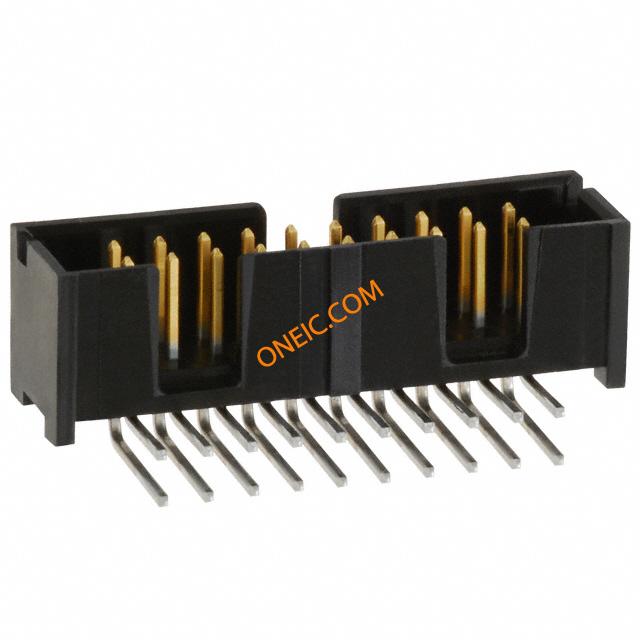

103310-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS GOLD Headers & Wire Housings 020 LOPRO HDR RA 15D Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 020 LOPRO HDR RA 15DP |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 75 |
合规参数
| RoHS | Lead free / RoHS non-compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 输入电阻 | 5000 | 最大额定电流 | 1 A |
| 绝缘电阻 | 5000 MOhms | 连接器类型 - 电压输入 | 浸焊 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 9.77 mm [ .38 in ] | 长度 | 33.02 |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 法兰特征 | 是 |
| 安装样式 | 低 | 排数 | 2 |
| 外壳材料（壳体） | 4 面 | 驱动力 | 不带 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 包装数量 | 75 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Through Hole |
| 第一连接器类型 | 插针接头 | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 20 |
| 位数 | 20 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 钯镍打底镀薄金 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.43 mm |
| 接触镀层厚度 | 15µin (0.38µm) | 外壳尺寸，连接器布局 | 3.81 mm [ .15 in ] |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 极性 | 带有 |
| 产品子类型 | Header Assemblies | DigiKey可编程 | 带有 |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号

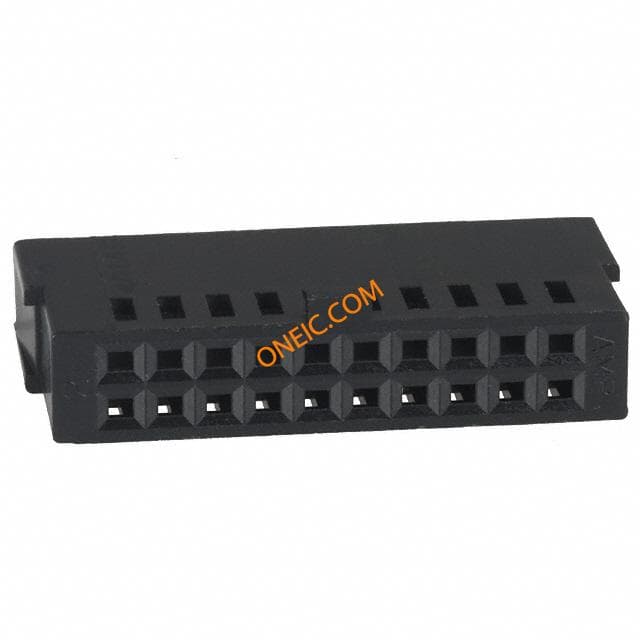

104483-3
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 20 POS POLARIZED Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM TE Connectivity AMPMODU Short Point 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 连接器外壳 20 SHORT PT RCPT HSG DR .100CL
