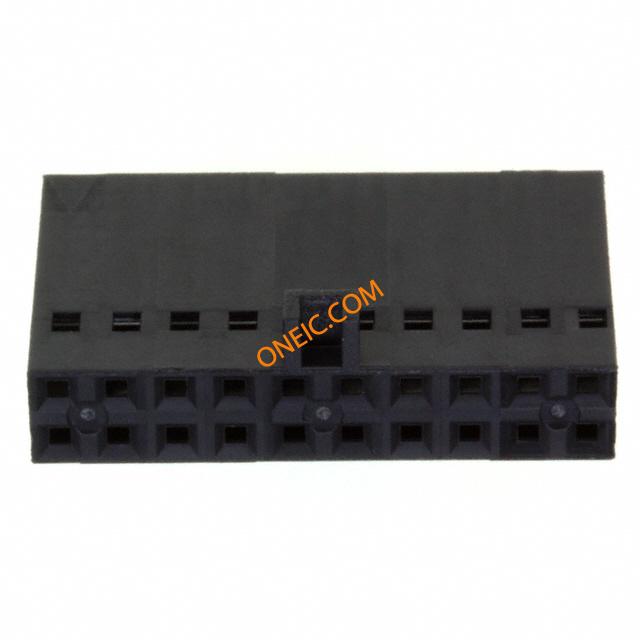

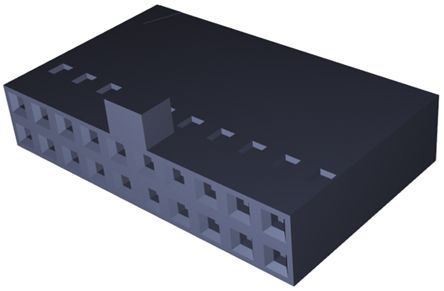

104483-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 20 POS POLARIZED Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM TE Connectivity AMPMODU Short Point 系列 2 行 2.54mm 节距 20 路直母电缆安装 PCB 连接器外壳 20 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

量程（°/s）	:TE - AMPMODU Series	额定电压	300 VAC
最大额定电流	3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0	包装方式	Bulk
导线线规	22-30 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	接触镀层	:-
安装样式	Wire	排数	2
触头材料	:-	壳体材料	Thermoplastic
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	20	接触件端接	Crimp
位数	20

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	Polarizing Key	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

104483-3?RQPN=104483-3

相关型号

103310-5

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS GOLD Headers & Wire Housings 020 LOPRO HDR RA 15D Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 020 LOPRO HDR RA 15DP

¥5.2560

详情

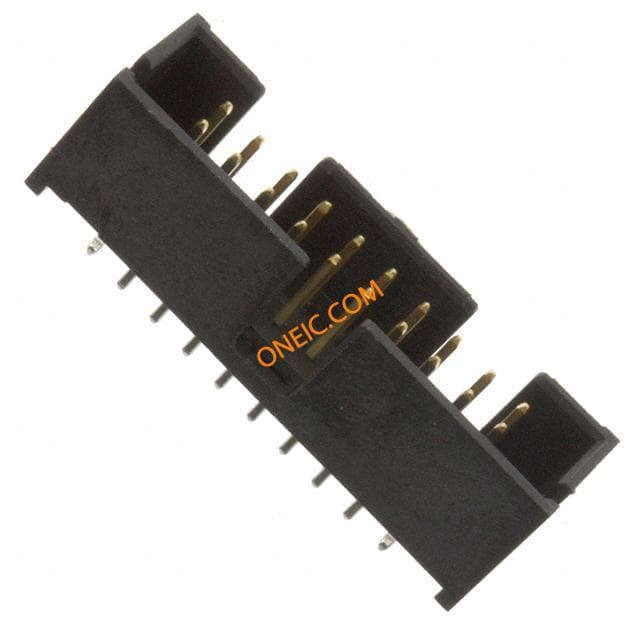

5104338-4

te connectivity / amp

Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 20POS GOLD Headers & Wire Housings 100X100 HDR 2X010P VERT LOW PROFILE Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM LOPROHTKNKDDRVHD,A/LLOWPROHDR20PVERTHT TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 20P VERT HT

¥7.1935

详情

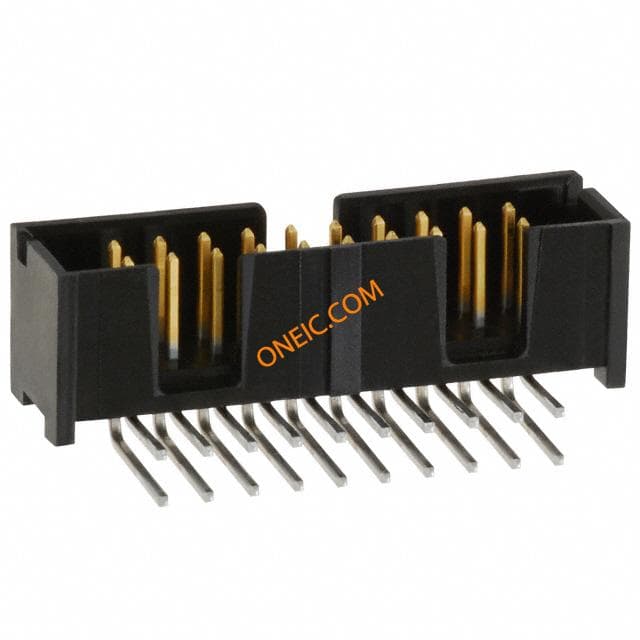

5103310-5
