点击放大查看

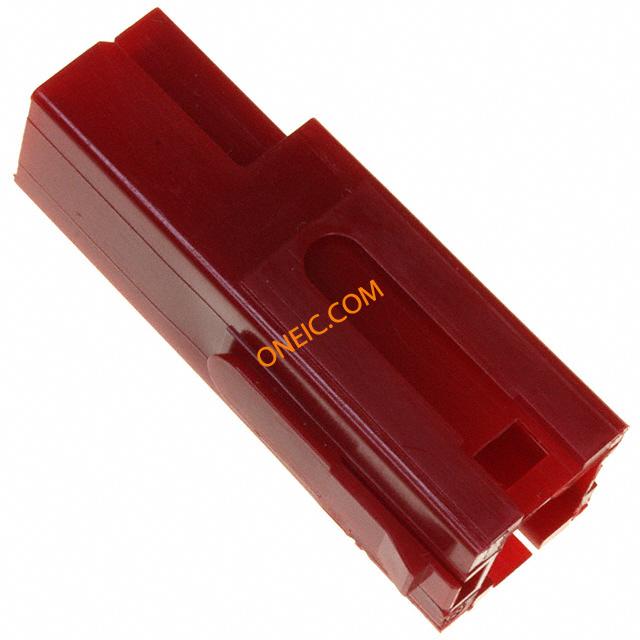

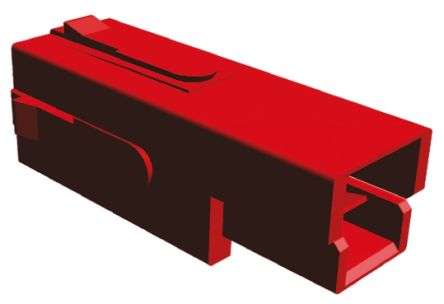

53884-4
| 制造商 | |
| 描述 | Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS RED POWER LOCK Housing 1 way in line Power lock Power to the Board HOUSING ASSY RED 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = RedWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, Connector,PowerLock;Polycarbonate;1;Hermaphroditic;In-Line;Red TE Connectivity 2 系列 外壳, 使用于插座连接器 HSG ASSY,PWR LK,SRS2,1 POS,RED |
| 分类 |
商业参数
| 其他名称 | 538844 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| UL等级 | 获得认可 | 零件状态 | E28476 |
| 无铅定义 | Not relevant for lead free process | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
电气参数
| 额定电压 | 600 V | 最小供电电压 | 600VAC |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Red | 深度 | 48.08 mm |
| 间距 | Not Required mm | 宽度 | 16.08 mm [ .63 in ] |
| 高度 | 16.08 mm [ .63 in ] | 长度 | 48.08 mm [ 1.89 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 红色 | 电缆类型 | 分离式导线 |
| 导线线规 | 6-18 AWG | 触点形式 | Non-Gender Specific |
| 触头类型 | Non-Gender Specific | 外壳颜色 | Red |
| 安装类型 | Straight | 连接器类型 | Self Mating |
| 紧固类型 | Locking Ramp | 安装样式 | In Line |
| 排数 | 1 | 封装形式 | Hermaphroditic |
| 壳体材料 | Polycarbonate | 安装特性 | Without |
| 包装数量 | 250 | 主要材料 | HighCurrent |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 1 | 线规或范围 - AWG | 18-6 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Series II |
| 制造商全称 | AMPPowerLock | 产品子类型 | Housing |
| 配置 | In-Line | 附件类型 | Housing |
| 输出配置 | Free Hanging (In-Line) | 应用细节 | Power |
| 适用产品/相关产品 | Receptacle Connector | ||
环境参数
| 工作温度 | -55C to 85C | ||
