点击放大查看

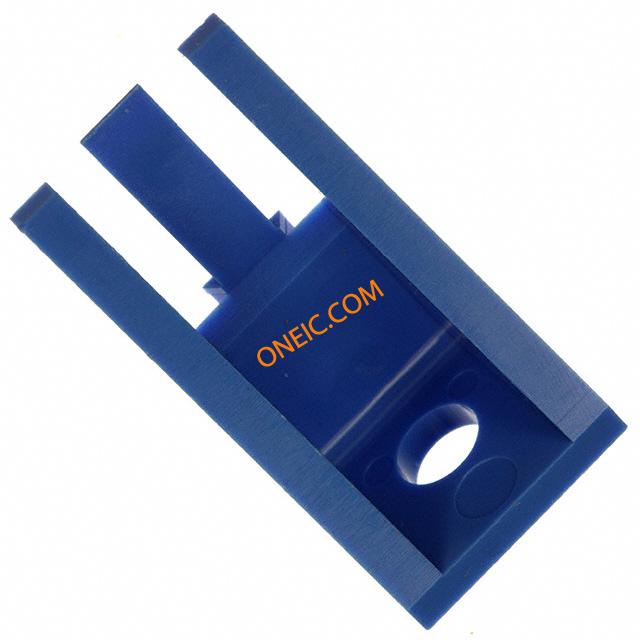

53887-1
| 制造商 | |
| 描述 | Connector Accessories Male Mounting Lug Polycarbonate Blue Power Lock Connectors CONN ADAPTER MALE POWER LOCK Power Lock Adapter; Polycarbonate; Male (Lug); Blue; AMP Brand; Mounting Lug Heavy Duty Power Connectors ADAPTER P/MNT MALE 10-6 AWG Connector Accessories Male Mounting Lug Polycarbonate Blue Product Highlights:Mounting LugHousing Color = BlueProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, PowerLockAdapter;Polycarbonate;Male(Lug);Blue;AMPBrand;MountingLug PNL MT ADAPTER,MALE,POWER LOCK |
| 分类 |
商业参数
| 其他名称 | 538871 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| UL等级 | 获得认可 | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | 蓝色 | 深度 | 15.24 mm |
| 宽度 | 15.24 mm [ .6 in ] | 高度 | 27.43 mm |
| 长度 | 27.43 mm [ 1.0799 in ] | 材料（通用） | 聚碳酸酯 |
| 包装方式 | 零散零件 | 外壳颜色 | Blue |
| 安装类型 | Male | 连接器类型 | Adapter - Mounting |
| 安装样式 | Male(Lug) | 插入力 | Male |
| 触头材料 | Copper | 壳体材料 | Polycarbonate |
| 总长度 | 15.24 mm | 包装数量 | 200 |
| 主要材料 | HighCurrent | 连接器颜色 | 蓝色 |
| 位数 | 1 | ||
产品信息
| 类型 | Mounting Lug | 系列 | Series II |
| 制造商全称 | AMPPowerLock | 产品子类型 | Mounting Lug |
| 附件类型 | Adapter - Mounting | 射频系列/标准 | 53887 |
