点击放大查看

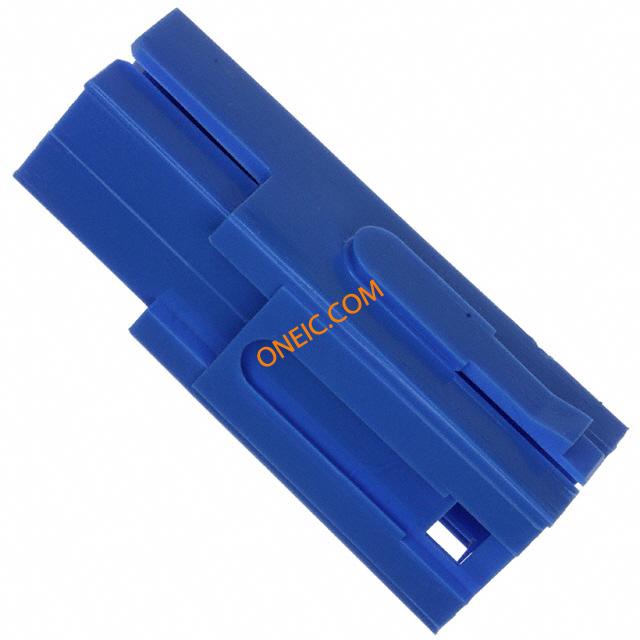

53884-1
| 制造商 | |
| 描述 | Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS BLU POWER LOCK Powerlock I,Hermaphroditic housing,1way Power to the Board HOUSING ASSY BLUE 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = BlueWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, PLUG & SOCKET HOUSING, POLYCARBONATE AMPPOWERLOCK,HSGASSY,PWRLK,SRS2,1POS,BLU TE Connectivity Power Lock II 系列 1 路 直 母 压接连接器外壳 HSG ASSY,PWR LK,SRS2,1 POS,BLU |
| 分类 |
商业参数
| 其他名称 | 538841 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 V | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Blue | 深度 | 48.08mm |
| 间距 | Not Required mm | 重量 | 0.005 |
| 包装方式 | Bulk | 导线线规 | 6-18 AWG |
| 触头类型 | Non-Gender Specific | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Self Mating |
| 紧固类型 | Locking Ramp | 安装样式 | In Line |
| 排数 | 1 | 封装形式 | Hermaphroditic |
| 壳体材料 | Polycarbonate | 安装特性 | Without |
| 主要材料 | HighCurrent | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 1 |
| 线规或范围 - AWG | 18-6 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Series II |
| 制造商全称 | AMPPowerLock | 产品子类型 | Housing |
| 配置 | In-Line | 端口数 | :1 |
| 适用产品/相关产品 | AMP Power Lock Connector | ||
环境参数
| 工作温度 | -55C to 85C | ||
相关型号

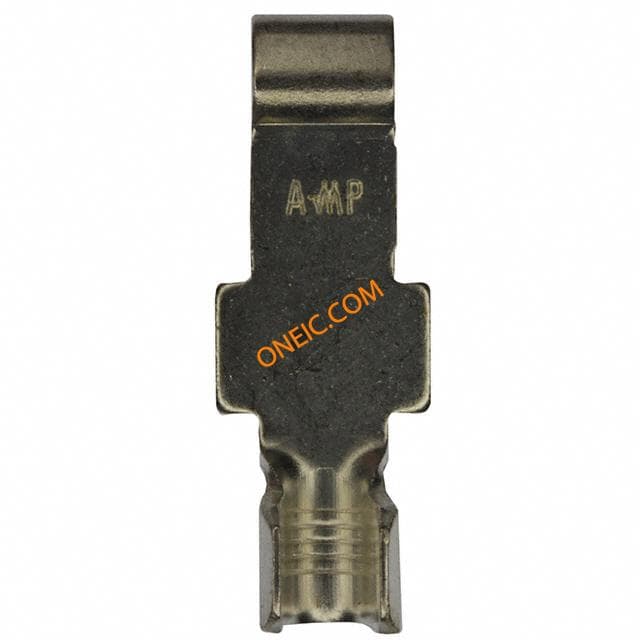

53880-4
te connectivity / amp
Contact Crimp ST Cable Mount Loose Piece Power Lock Connectors CONN TERM 6-10AWG CRIMP PWR LOCK Contact Crimp 10-6AWG Power Lock Power to the Board CONTACT CRIMP 10-6 Series 2 Contact Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 5.00-15.00² [10-6] mm [AWG]Product Series = Series IIWire Termination Type = CrimpLoose PieceSearch Keywords:cabled power, power wiring devices, high current, PowerConnectorContact;Copper;Silver;10to6AWG;Crimp(Wire);0.048in. TE Connectivity 2 系列 触点, 使用于紧凑型电源连接器 CONTACT,PWR LK,SRS2,LS PC,CRMP

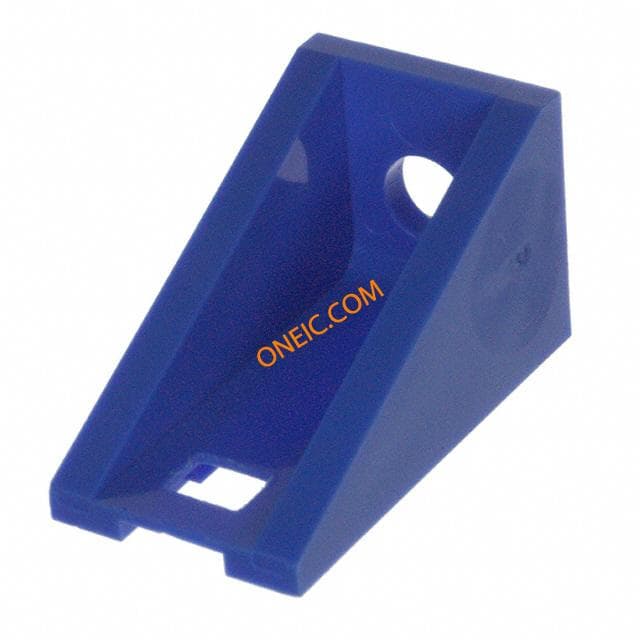

53886-1
te connectivity / amp
Connector Accessories Female Mounting Lug Polycarbonate Blue Power Lock Connectors CONN ADAPTER FEMALE POWER LOCK Heavy Duty Power Connectors ADAPTER P/MNT FEMALE 10-6 AWG Connector Accessories Female Mounting Lug Polycarbonate Blue Product Highlights:Mounting LugHousing Color = BlueProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, MOUNTING LUG, POWER LOCK CONNECTOR PowerLockAdapter;Polycarbonate;Female(Lug);Blue;AMPBrand;MountingLug Mounting Adapter Female Blue Power Lock Connector PNL MT ADAPTER,FEMALE,POWER LK

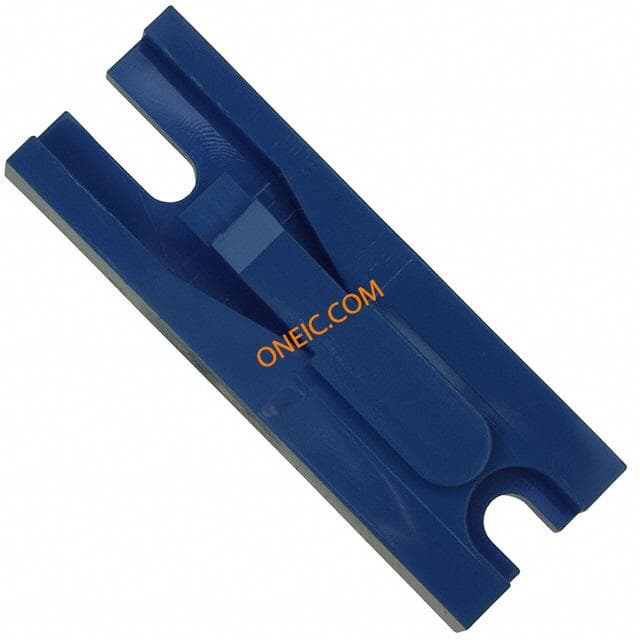

53885-1
te connectivity / amp
Connector Accessories Mounting Adapter Polycarbonate Blue Power Lock Connectors CONN ADAPTER MT BLUE POWER LOCK Heavy Duty Power Connectors ADAPTER SURFACE MNT 10-6 AWG Connector Accessories Mounting Adapter Polycarbonate Blue Product Highlights:Mounting AdapterHousing Color = BlueProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, SURF MT ADAPTER,POWER LK,SRS2

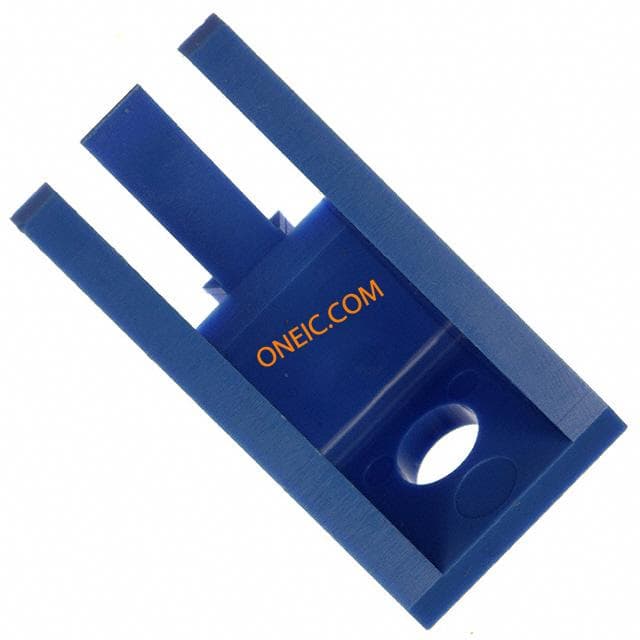

53887-1
te connectivity / amp
Connector Accessories Male Mounting Lug Polycarbonate Blue Power Lock Connectors CONN ADAPTER MALE POWER LOCK Power Lock Adapter; Polycarbonate; Male (Lug); Blue; AMP Brand; Mounting Lug Heavy Duty Power Connectors ADAPTER P/MNT MALE 10-6 AWG Connector Accessories Male Mounting Lug Polycarbonate Blue Product Highlights:Mounting LugHousing Color = BlueProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, PowerLockAdapter;Polycarbonate;Male(Lug);Blue;AMPBrand;MountingLug PNL MT ADAPTER,MALE,POWER LOCK

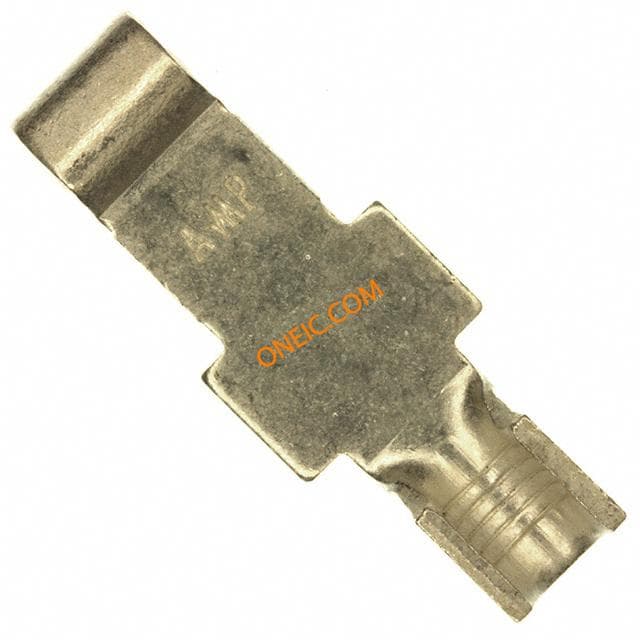

54330-1
te connectivity / amp
Contact Crimp ST Cable Mount Loose Piece Power Lock Connectors CONN TERM PWR LOCK 6AWG SOLDER PowerConnectorContact,Copper,Silver,6AWG Power to the Board CONTACT SOLDER 6 MAX Series 2 Conn Contact 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 13.00-15.00² [6] mm [AWG]Product Series = Series IIWire Termination Type = SolderLoose PieceSearch Keywords:cabled power, power wiring devices, high current, PowerConnectorContact;Copper;Silver;6AWG(Max.);Solder(Wire);0.048in. CONTACT,PWR LK,SRS2,LS PC,SLDR

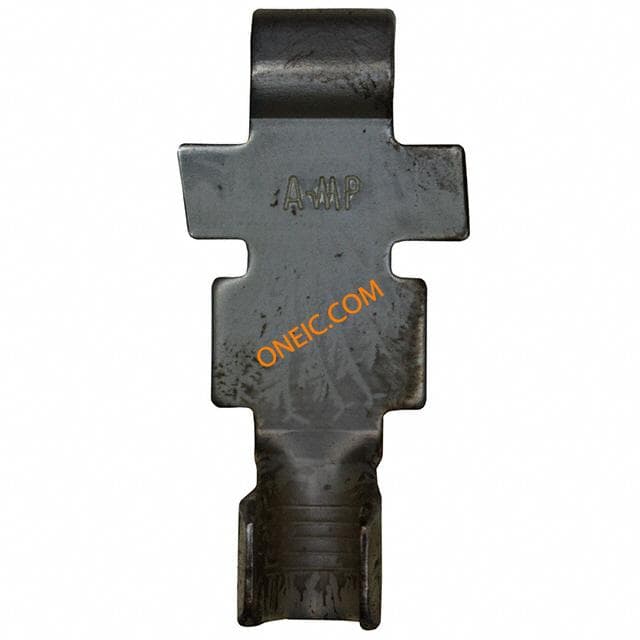

53880-2
