点击放大查看

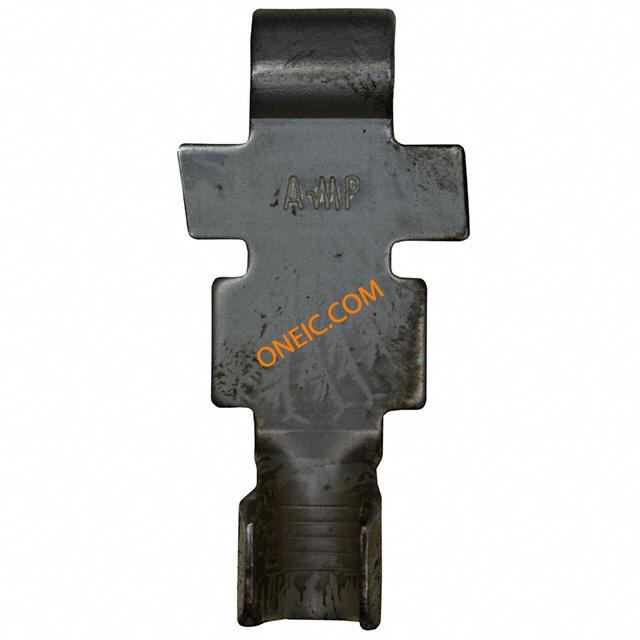

53880-2
| 制造商 | |
| 描述 | Contact Crimp ST Cable Mount Loose Piece Power Lock Connectors CONN TERM 6-10AWG CRIMP PWR LOCK Power to the Board CONTACT PWR LK Contact Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 5.00-15.00² [10-6] mm [AWG]Product Series = Series IIWire Termination Type = CrimpPackaging Method = StripSearch Keywords:cabled power, power wiring devices, high current, CONTACT, PIN/SOCKET, 10-6AWG, CRIMP CONTACT,PWR LK,SRS2,STRIP,CRMP |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 VAC | 最大额定电流 | 53 A |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 6-10 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 插针或插孔 | Non-Gendered |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 厚度（最大） | 1.22 [0.048] | 触头材料 | Copper |
| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 接触件端接 | Crimp |
| 典型触点布局 | Power | 接触镀层厚度 | 200µin (5.08µm) |
| 线规或范围 - AWG | 6-10 | 线规或范围 - mm² | 5.00-15.00² [10-6] |
产品信息
| 系列 | Series II | 产品子类型 | Contact |
| 适用产品/相关产品 | :Power Lock Series II Connectors | ||
环境参数
| 工作温度 | - 55 C to + 85 C | ||
