53880-4
| 制造商 | |
| 描述 | Contact Crimp ST Cable Mount Loose Piece Power Lock Connectors CONN TERM 6-10AWG CRIMP PWR LOCK Contact Crimp 10-6AWG Power Lock Power to the Board CONTACT CRIMP 10-6 Series 2 Contact Crimp ST Cable Mount Loose Piece Product Highlights:ContactWire Range = 5.00-15.00² [10-6] mm [AWG]Product Series = Series IIWire Termination Type = CrimpLoose PieceSearch Keywords:cabled power, power wiring devices, high current, PowerConnectorContact;Copper;Silver;10to6AWG;Crimp(Wire);0.048in. TE Connectivity 2 系列 触点, 使用于紧凑型电源连接器 CONTACT,PWR LK,SRS2,LS PC,CRMP |
| 分类 |
商业参数
| 其他名称 | 538804 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHScompliant,ELVcompliant |
| UL等级 | 获得认可 | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 53 A | 连接器类型 - 电压输入 | Crimp |
机械参数
| 间距 | Not Required mm | 包装方式 | Bulk |
| 厚度 | 0.048in. | 电缆类型 | 实芯, 绞线 |
| 导线线规 | 6-10 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Non-Gendered | 电缆直径 | 9072 – 26244 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 安装样式 | Cable | 插入件材料 | 铜 |
| 厚度（最大） | 1.22 [0.048] | 触头材料 | Copper |
| 壳体材料 | Not Required | 总长度 | 32.64 mm |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 触点镀层 | Silver |
| 接触镀层厚度 | 200µin (5.08µm) | 线规或范围 - AWG | 10-6 |
| 线规或范围 - mm² | 5.00-15.00² [10-6] | ||
产品信息
| 制造商 | .838 – 1.27 | 类型 | Contact |
| 系列 | Series II | 制造商全称 | AMPBrand |
| 产品子类型 | Contact | 附件类型 | Contact |
| 端口数 | 1 Port | 应用细节 | Power |
| 适用产品/相关产品 | Compact Power Connector | ||
环境参数
| 工作温度 | - 55 C to + 85 C | ||
文档与媒体
相关型号
68321-1
te connectivity / amp
ROTA-CRIMP HT POWERLOCK 14-6 Crimpers ROTA-CRIMP TOOL 14-6 AWG TOOL HAND ROTA-CRIMP 6-10AWG
53884-4
te connectivity / amp

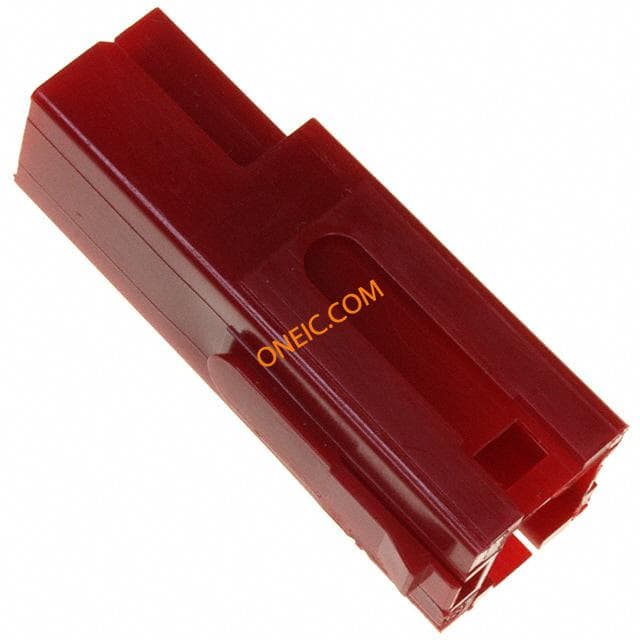

Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS RED POWER LOCK Housing 1 way in line Power lock Power to the Board HOUSING ASSY RED 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = RedWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, Connector,PowerLock;Polycarbonate;1;Hermaphroditic;In-Line;Red TE Connectivity 2 系列 外壳, 使用于插座连接器 HSG ASSY,PWR LK,SRS2,1 POS,RED
53884-3
te connectivity / amp

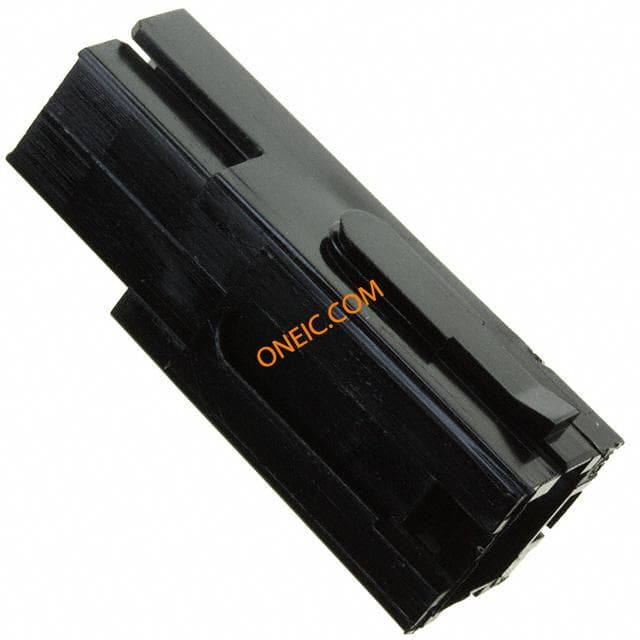

Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS BLK POWER LOCK Power Lock II Housing assembly 1P Power to the Board HOUSING ASSY BLACK 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = BlackWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, RECTANGULAR CONNECTOR, 1POS, CRIMP Connector,PowerLock;Polycarbonate;1;Hermaphroditic;In-Line;Black HSG ASSY,PWR LK,SRS2,1 POS,BLK
53884-1
te connectivity / amp

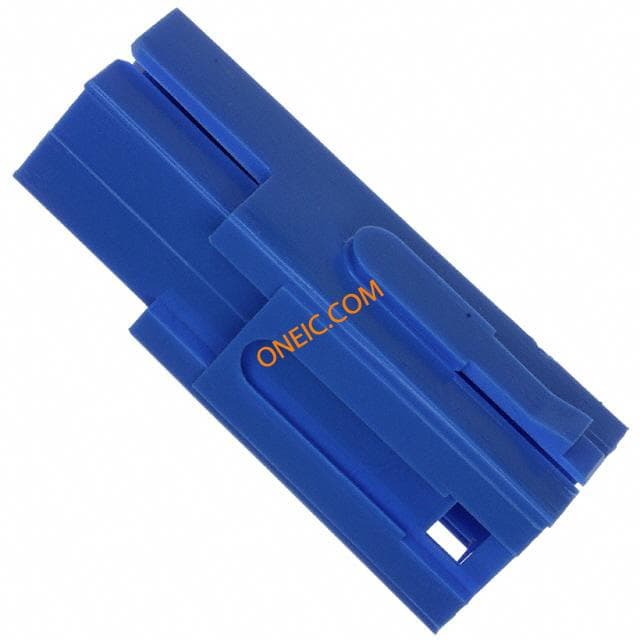

Conn Housing RCP 1 POS ST Power Lock Connectors CONN HOUSING 1POS BLU POWER LOCK Powerlock I,Hermaphroditic housing,1way Power to the Board HOUSING ASSY BLUE 10-6 AWG Conn Housing RCP 1 POS ST Product Highlights:HousingNumber of Positions = 1Housing Color = BlueWithout Mounting FlangeProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, PLUG & SOCKET HOUSING, POLYCARBONATE AMPPOWERLOCK,HSGASSY,PWRLK,SRS2,1POS,BLU TE Connectivity Power Lock II 系列 1 路 直 母 压接连接器外壳 HSG ASSY,PWR LK,SRS2,1 POS,BLU
