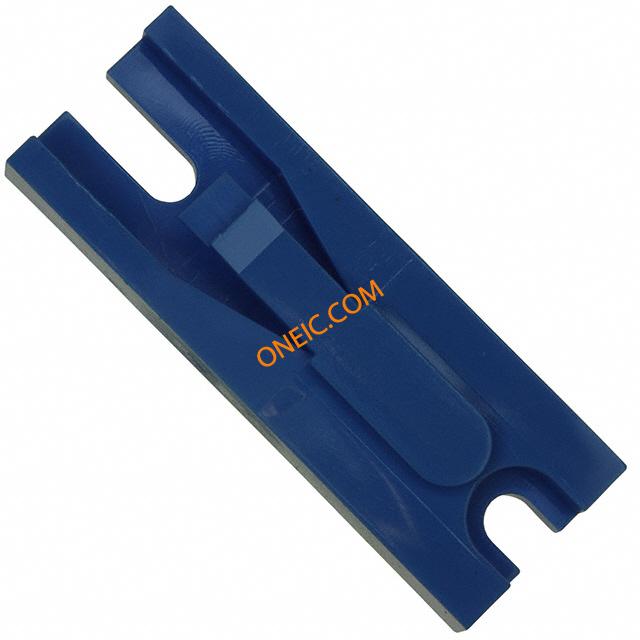

点击放大查看
53885-1
| 制造商 | |
| 描述 | Connector Accessories Mounting Adapter Polycarbonate Blue Power Lock Connectors CONN ADAPTER MT BLUE POWER LOCK Heavy Duty Power Connectors ADAPTER SURFACE MNT 10-6 AWG Connector Accessories Mounting Adapter Polycarbonate Blue Product Highlights:Mounting AdapterHousing Color = BlueProduct Series = Series IISearch Keywords:cabled power, power wiring devices, high current, SURF MT ADAPTER,POWER LK,SRS2 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 供电电压 | 600 | ||
机械参数
| 颜色 | 蓝色 | 深度 | 15.24 mm |
| 宽度 | 15.24 mm [ .6 in ] | 高度 | 5.1 mm [ .2 in ] |
| 长度 | 43.18 mm [ 1.699 in ] | 材料（通用） | 聚碳酸酯 |
| 包装方式 | 袋 | 外壳颜色 | Blue |
| 安装类型 | Surface Mount | 连接器类型 | 线到线 |
| 安装样式 | 不带 | 壳体材料 | Polycarbonate |
| 总长度 | 43.18 mm | 包装数量 | 250 |
| 连接器颜色 | 蓝色 | 位数 | 1 |
产品信息
| 类型 | Mounting Adapter | 系列 | Series II |
| 产品子类型 | Mounting Adapter | 附件类型 | Adapter - Mounting |
| 射频系列/标准 | 53885 | ||
