5-104362-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH W/HLDWN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A33972 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 26 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mohm |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 深度 | 6.65 mm |
| 间距 | 2.54 mm | 高度 | 13.59 mm |
| 长度 | 20.32 mm [ .8 in ] | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体镀层 | Tin | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 20.32 mm | 安装特性 | 压具 |
| 包装数量 | 26 | 面板安装类型 | 垂直 |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 7 | 端接表面处理 | 带有 |
| 位数 | 7 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | 封装热阻 | 1.58 mm [ .062 in ] |
文档与媒体
相关型号

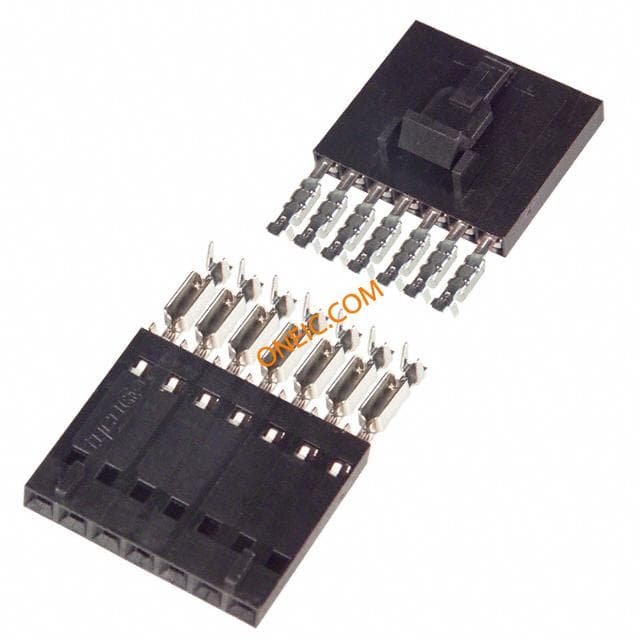

5-103956-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 POLAR TIN Housing 7 way receptacle 2.54mm AmpModu Headers & Wire Housings RECEPTACLE ASSY 7P Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 7Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing7wayreceptacle2.54mmAmpModu TE Connectivity AMPMODU MTE 系列 7路 2.54mm节距 母 IDC 连接器 , 电缆安装 2X7 MTE RCPT SR LATCH .100CL
103956-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 7P .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionNumber of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X7 MTE RCPT SR LATCH .100CL
103960-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 7POS .100 26-30 15GOLD Headers & Wire Housings 2X7 MTE RCPT SR LATCH .100CL 2X7 MTE RCPT SR LATCH .100CL 2X7 MTE RCPT SR LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103957-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 7P Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionNumber of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X7 MTE RCPT SR LATCH .100CL
103648-6
te connectivity / amp
Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 7POS .100 UNLOADED Headers & Wire Housings RCPT 7P .100 UNLOAD Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE RCPT HSG SR RIB .100CL
103961-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 7POS .100 26-30 30GOLD Headers & Wire Housings 2X7 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionNumber of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X7 MTE RCPT SR LATCH .100CL
104257-6
te connectivity / amp
Conn Housing RCP 7 POS 2.54mm Crimp ST Headers & Wire Housings RECEPTACLE ASSY 7P .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .1" POL UNLOAD Housing FH 7way latch Rec 2.54mm AmpModu Conn Housing RCP 7 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE, 7POS, 2.54MM ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 7 路 直 母 PCB 壳体 07 MTE RCPT HSG SR LATCH .100
103969-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 22-26 15AU
5-103958-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 7P Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X7 MTE RCPT SR LATCH .100CL
5-103961-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 2X7 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts 2X7 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 7Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103960-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 7POS .100 26-30 GOLD Headers & Wire Housings 2X7 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 7Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X7 MTE RCPT SR LATCH .100CL

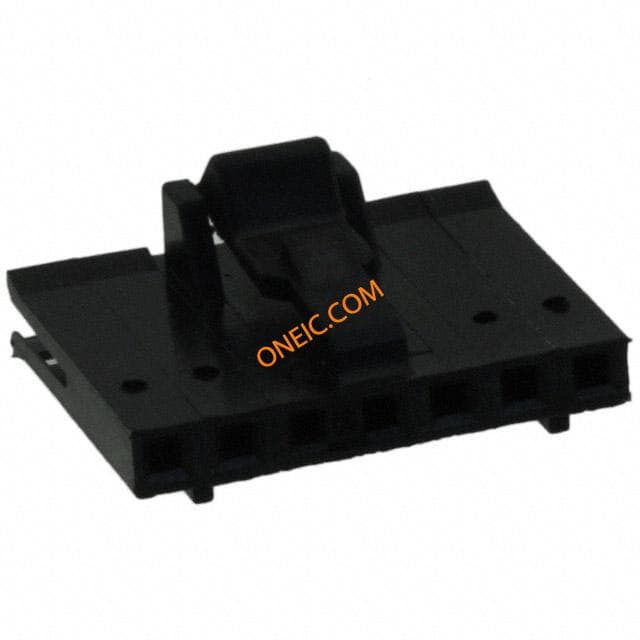

487526-6
te connectivity / amp
Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 007 HOUSING FFC RCPT 100CL SR FFC & FPC Connectors FFC RCPT HSG 7P Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 7Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
103959-6
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 7POS .100 26-30 TIN
5-103957-6
te connectivity / amp
Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 7P Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 7Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 7POS, 2.54MM 2X7 MTE RCPT SR LATCH .100CL

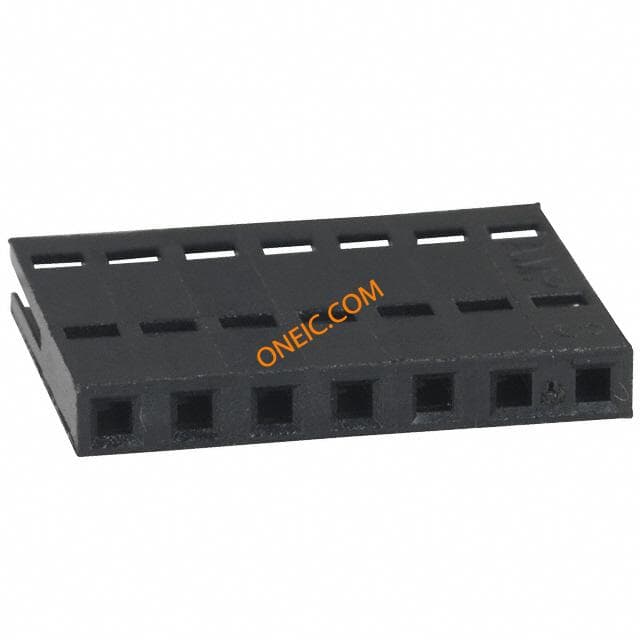

487378-6
