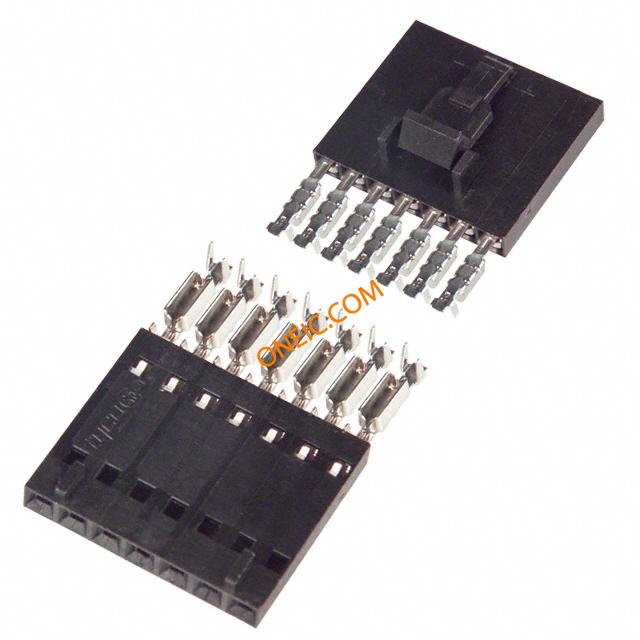

5-103958-6

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 7P Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X7 MTE RCPT SR LATCH .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	30	工厂包装数量	30

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	267 V	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3 A
保护额定电压（VPR）	600 VAC

机械参数

颜色	Black	间距	2.54 mm
高度	5.08 mm [ .2 in ]	长度	35.56 mm [ 1.4 in ]
锁定类型	Latch	包装方式	Tube
导线类型	Discrete or Ribbon Cable	壳体颜色	黑色
导线线规	22-26 AWG	排间距	2.54 mm
端接方式	IDT	触头类型	Female Socket
第二连接器	With	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold Over Nickel
紧固类型	Latch Lock	安装样式	Wire
排数	1	插入件材料	磷青铜
操作力	Standard	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	包装数量	30
面板安装类型	不带	电缆端接方式	IDC
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	7	绝缘直径	1.37 mm [ .054 in ]
位数	7	兼容外壳尺寸（如TM-700等）	与接头配合
安装孔直径	带有	典型触点布局	同轴
接触镀层厚度	30µin (0.76µm)	静电放电屏蔽	带有

产品信息

备注	带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。	类型	IDC Connector
连接器性别	RCP	系列	AMPMODU MTE
产品特性	Closed End	产品子类型	Headers

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

5-103958-6?RQPN=5-103958-6
