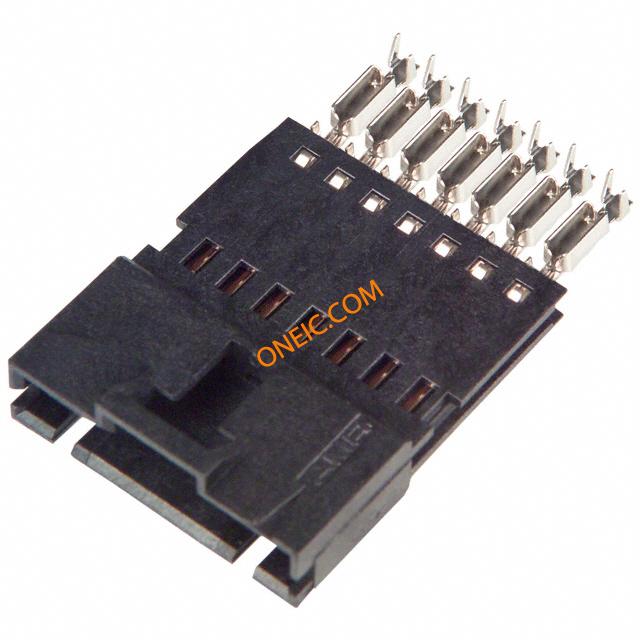

5-103946-6

点击放大查看

5-103946-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector PIN 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 7POS .100 POLAR 30AU .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = PlugContact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 3X7 MTE SHRD PIN SR POL .100CL
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格27标准包装数量27

合规参数

RoHSLead free / RoHS Compliant标准CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

供电电压267 V输入电阻5000
连接器阻抗刺破式压接 (IDC), 压接最大额定电流3
保护额定电压（VPR）600 V

机械参数

颜色Black间距2.54 mm
高度.66 mm [ .26 in ]长度6.07 mm [ 2.39 in ]
锁定类型Latch包装方式Tube
导线类型Ribbon Cable壳体颜色黑色
导线线规22-26 AWG端接方式IDT
触头类型Male Pin第二连接器With
安装类型Free Hanging (In-Line)连接器类型Plug
接触镀层Gold Over Nickel安装样式不带
排数1插入件材料磷青铜
壳体材料热塑塑料包装数量3
面板安装类型不带电缆端接方式IDC
端接样式插针触点数7
位数7兼容外壳尺寸（如TM-700等）配合母端
安装孔直径带有典型触点布局同轴
接触镀层厚度30µin (0.76µm)静电放电屏蔽带有

产品信息

备注带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。类型IDC Connector
连接器性别PIN产品特性Closed End
产品子类型连接器

环境参数

测试温度标准部件 - 非辉光导线工作温度-65 – 105
