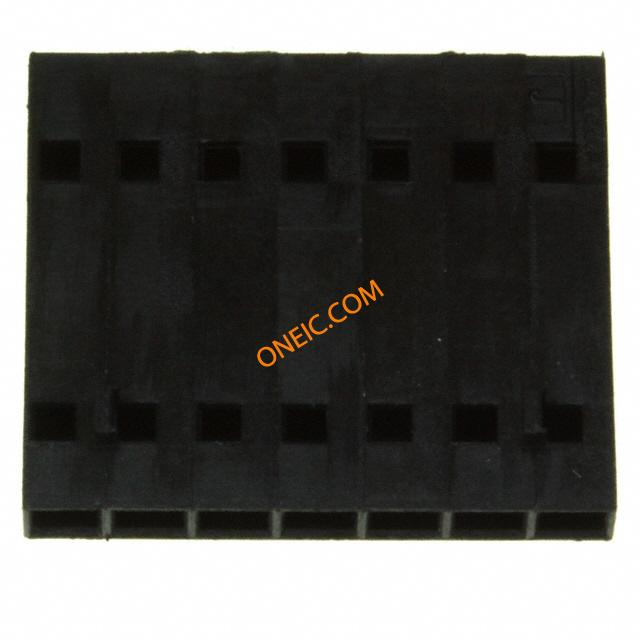

103648-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 7POS .100 UNLOADED Headers & Wire Housings RCPT 7P .100 UNLOAD Conn Housing RCP 7 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE RCPT HSG SR RIB .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 600 VACrms |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 3.5 mm |
| 长度 | 17.72 mm [ .7 in ] | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 触头类型 | Female Socket | 极化 | Ribbed |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | Receptacle | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 17.72 mm | 包装数量 | 1 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 7 |
| 接触件端接 | Crimp | 位数 | 7 |
| 兼容外壳尺寸（如TM-700等） | 公端 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [.100] | 典型触点布局 | 同轴 |
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65C to 105C |
文档与媒体
相关型号
