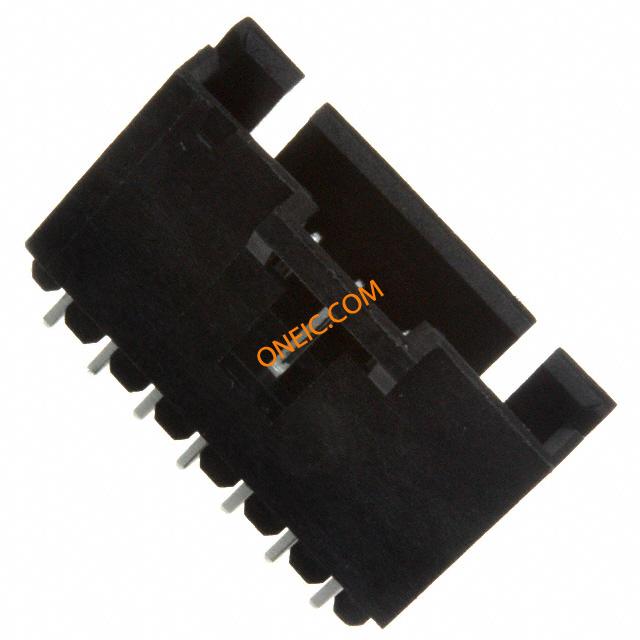

5-103639-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 7POS PCB TIN Headers & Wire Housings LTCH HDR W/O SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 26 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | Latched | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.59 mm [ .535 in ] | 长度 | 20.32 mm [ .8 in ] |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 直角 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 [.100] | 极化 | Latched |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 安装样式 | Thru Hole | 排数 | 1 |
| 壳体镀层 | Tin | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 安装特性 | 压具 | 包装数量 | Tube |
| 面板安装类型 | 垂直 | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 7 |
| 端接表面处理 | 带有 | 位数 | 7 |
| 兼容外壳尺寸（如TM-700等） | 母端护套组件 | 触头长度-柱 | 3.3 mm [ .13 in ] |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 表面贴装焊盘尺寸 | Without |
| 端子柱长度 | 5.84 mm [ .23 in ] | 接触镀层厚度 | 100µin (2.54µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Use Keying Tool No. 91417-1 to remove post for keying. | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | MTE |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -65 â +105 | ||
