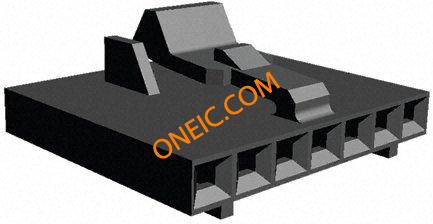

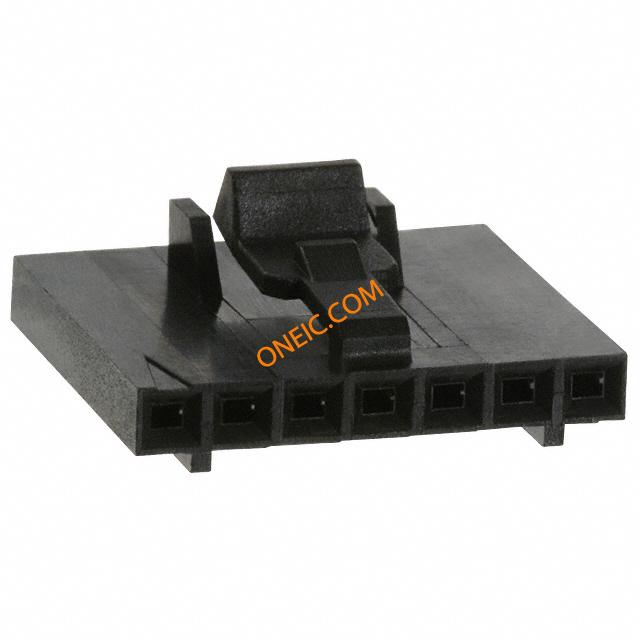

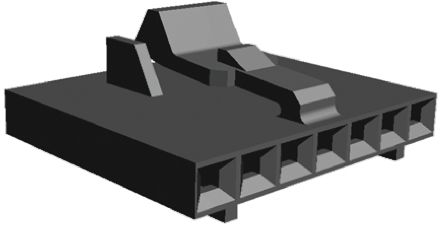

104257-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 7 POS 2.54mm Crimp ST Headers & Wire Housings RECEPTACLE ASSY 7P .100 AMPMODU Headers, Housings & Contacts CONN RECPT 7POS .1" POL UNLOAD Housing FH 7way latch Rec 2.54mm AmpModu Conn Housing RCP 7 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR HOUSING, RECEPTACLE, 7POS, 2.54MM ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 7 路 直 母 PCB 壳体 07 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 长度 | 17.72mm |
| 重量 | 0.00045 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 外壳样式 | Receptacle | 端接方式 | IDC |
| 触头类型 | Female Socket | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | Thermoplastic |
| 总长度 | 35.56 mm | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 7 | 接触件端接 | Crimp |
| 位数 | 7 | 中心触点材料 | 2.54 [.100] |
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 预加载 | No | 编码、键控 | No |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Headers - Latch / Eject |
| 矩阵（列×行） | 0.100in. | 适用产品/相关产品 | Centerline Single-Row Connector |
环境参数
| 工作温度 | -65C to 105C | ||
文档与媒体
