5-103961-6

点击放大查看

5-103961-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 7 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 2X7 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts 2X7 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 7Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格30
产品类别Headers & Wire Housings标准包装数量630

合规参数

RoHSRoHS Compliant标准CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

供电电压267 V输入电阻5000
连接器阻抗刺破式压接 (IDC), 压接最大额定电流3 A
保护额定电压（VPR）600 VAC

机械参数

颜色Black间距2.54 mm
高度5.08 mm [ .2 in ]长度35.56 mm [ 1.4 in ]
锁定类型Latch包装方式Tube
导线类型Discrete or Ribbon Cable壳体颜色黑色
导线线规30-26排间距2.54 mm
端接方式IDT触头类型Female Socket
第二连接器With安装类型Free Hanging (In-Line)
连接器类型Receptacle接触镀层Gold Over Nickel
紧固类型Latch Lock安装样式Wire
排数1插入件材料磷青铜
操作力Standard触头材料Phosphor Bronze
壳体材料Thermoplastic包装数量30
面板安装类型不带电缆端接方式IDC
端接样式Crimp第一触头极性Socket (Female)
触点数7绝缘直径1.37 mm [ .054 in ]
位数7兼容外壳尺寸（如TM-700等）与接头配合
安装孔直径带有典型触点布局同轴
接触镀层厚度30µin (0.76µm)静电放电屏蔽带有

产品信息

备注带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。类型IDC Connector
连接器性别RCP系列AMPMODU MTE
产品特性Closed End产品子类型Headers - Latch / Eject

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C

文档与媒体

在线文档
5-103961-6
在线文档
5-103961-6?RQPN=5-103961-6

相关型号

5-1375582-6

5-1375582-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADR 7POS IDC SMD GOLD Headers & Wire Housings 07 MTE VERTICAL SMT HDR 15 AU .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 7Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE VERTICAL SMT HDR 15 AU

¥9.8926
详情
5-103946-6

5-103946-6

te connectivity / amp

Conn IDC Connector PIN 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 7POS .100 POLAR 30AU .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = PlugContact Type = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 3X7 MTE SHRD PIN SR POL .100CL

¥11.6960
详情

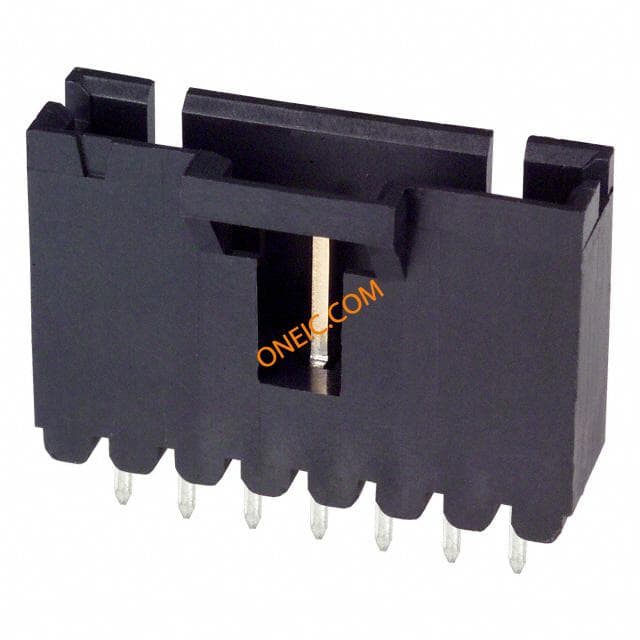

5-104363-6

5-104363-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 15AU Header 7 way pin 2.54mm IDC AmpModu Headers & Wire Housings 07 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm7 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM Header7waypin2.54mmIDCAmpModu TE Connectivity AMPMODU MTE 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 07 MTE HDR SRST LATCH .100CL

¥4.0800
详情
5-103735-6

5-103735-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 30AU Headers & Wire Housings LTCH HDR W/O SWAGE 7 .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 7Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 07 MTE HDR SRST LATCH .100CL

¥3.8080
详情
104503-6

104503-6

te connectivity / amp

Conn Housing PL 7 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 7POS .100 UNLOADED Headers & Wire Housings RCPT 7P .100 UNLOAD .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionHousing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 7 路 直 公 电缆安装 PCB 连接器外壳 07 MTE PIN HSG SR RIB .100CL

¥2.0876
详情

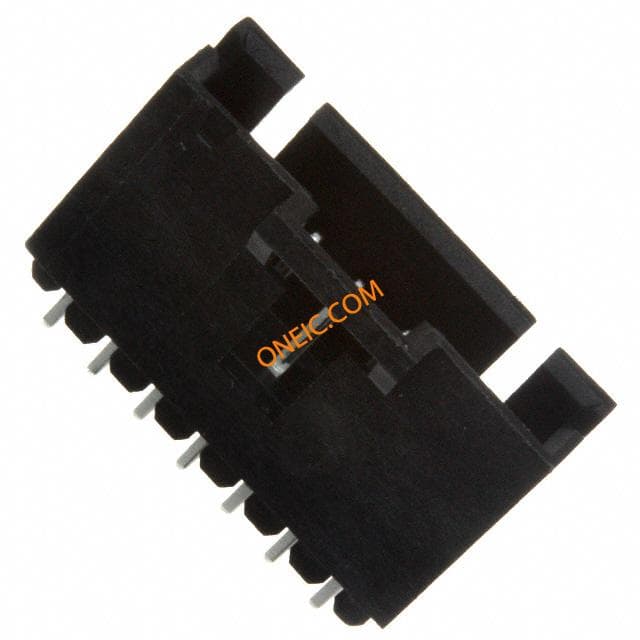

5-103639-6

5-103639-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 7POS PCB TIN Headers & Wire Housings LTCH HDR W/O SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH .100CL

¥3.1552
详情
5-1375549-6

5-1375549-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 7POS IDC STR SMD TIN Headers & Wire Housings 07 MTE VERT SMT HDR FULL LF-PB 07 MTE VERT SMT HDR FULL LF-PB 07 MTE VERT SMT HDR FULL LF-PB Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥10.1320
详情
5-1375583-6

5-1375583-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 7POS IDC SMD 30GOLD Headers & Wire Housings 07 MTE VERTICAL SMT HDR 30 AU .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 7Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;7;3A;600V;MTE(IDC);1;Vertical;0.100in.;5000Megohms;Brass 07 MTE VERTICAL SMT HDR 30 AU

¥10.3911
详情

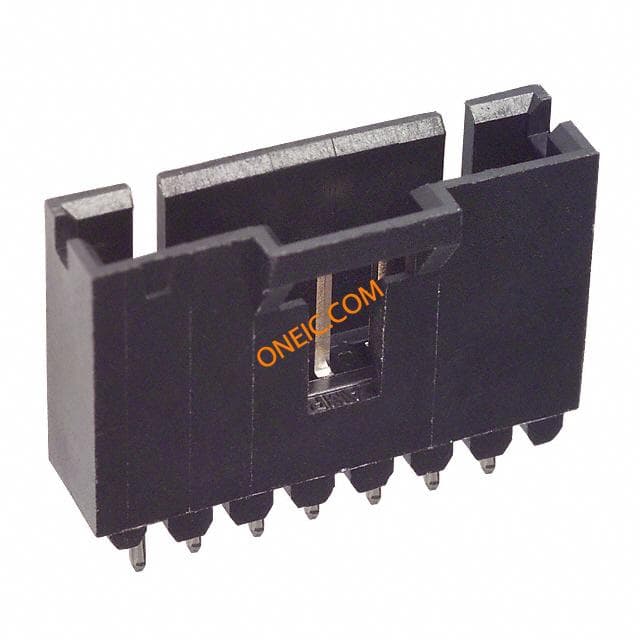

5-104362-6

5-104362-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 15AU Headers & Wire Housings LTCHNG HDR W/SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH W/HLDWN

¥4.2160
详情
5-103949-6

5-103949-6

te connectivity / amp

Conn IDC Connector PIN 7 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 3X7 MTE SHRD PIN SR LTCH .100 Headers & Wire Housings 3X7 MTE SHRD PIN SR LTCH .100 Conn IDC Connector PIN 7 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - PinHousing Accepts Contact Type = Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥15.7080
详情

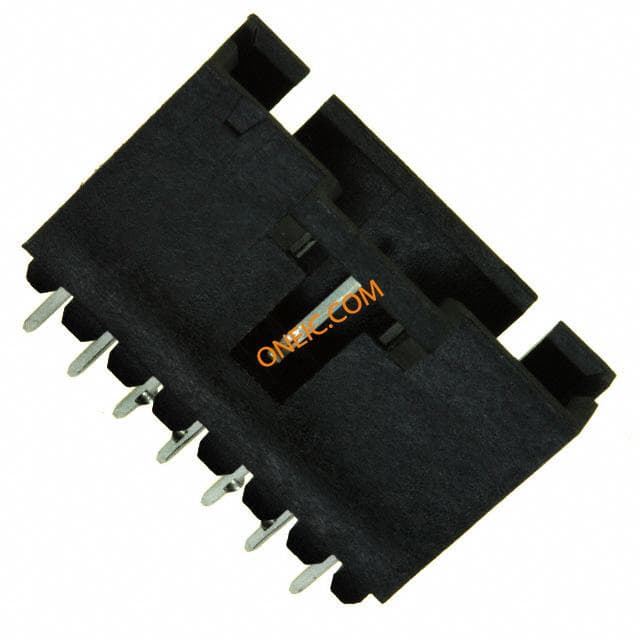

5-103669-6

5-103669-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 7POS PCB TIN Headers & Wire Housings LTCHNG HDR W/SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorHeaderConnector Style = PlugContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRST LATCH W/HLDWN

¥4.3452
详情

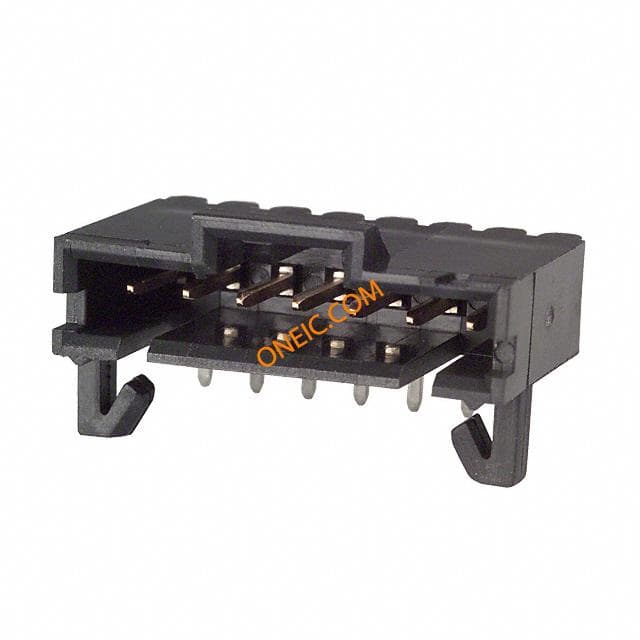

5-103904-6

5-103904-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 7POS 30AU Headers & Wire Housings LATCHING HDR SHRD 7P with hold down Conn Shrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRRA LATCH W/HLDWN

¥6.7626
详情
5-147278-6

5-147278-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 7POS R/A SMD GOLD Headers & Wire Housings HDR PIN 1X07C R/A SMT Conn Shrouded Header HDR 7 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionNumber of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 07 MTE HDR SRRA SFMNT .100CL

¥9.1800
详情

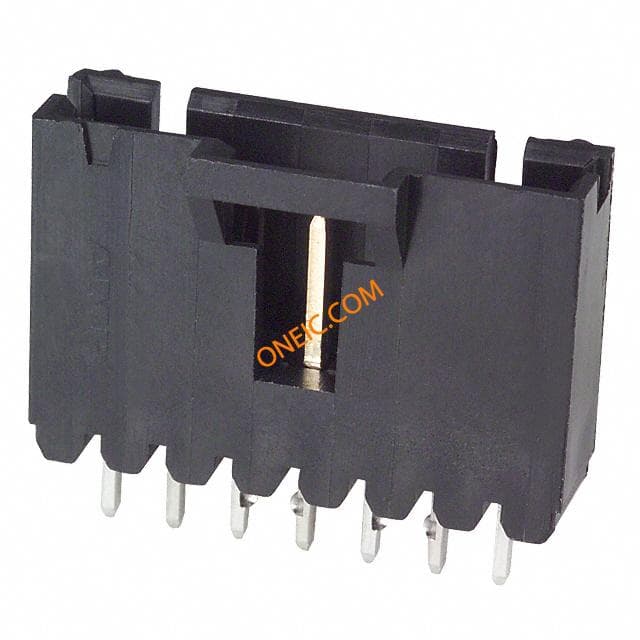

5-103908-6

5-103908-6

te connectivity / amp

Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 7POS 30AU Headers & Wire Housings LTCHNG HDR W/SWAGE 7 Conn Shrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)7 PositionNumber of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU 7 Position Single Row 2.54 mm Through Hole Header 07 MTE HDR SRST LATCH W/HLDWN

¥4.0800
详情

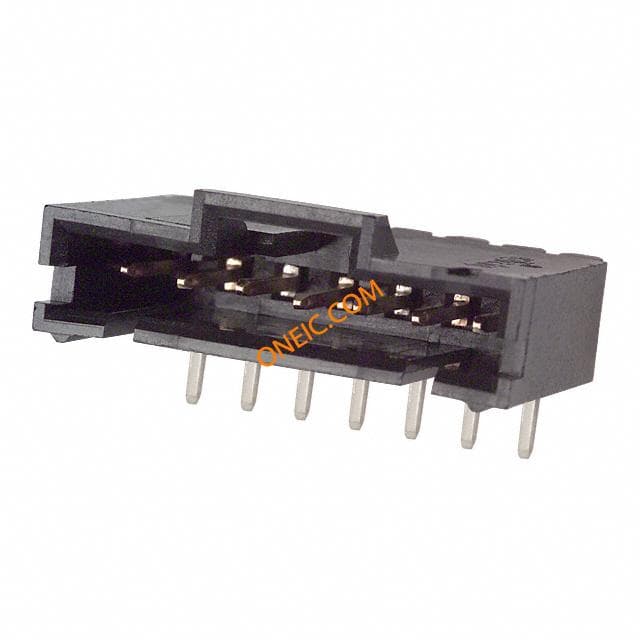

5-104935-8
