点击放大查看

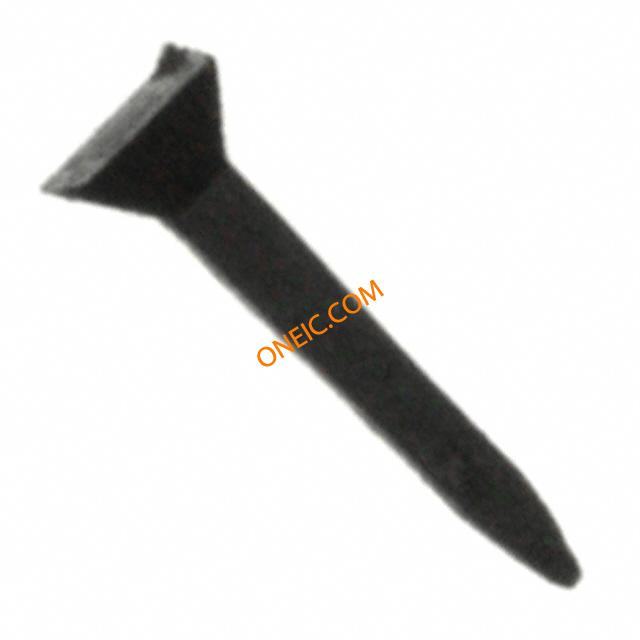

499712-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Keying Plug Thermoplastic Black Accessories (AMP-LATCH) CONN KEYING PLUG BLACK Keying plug AmpLatch Headers & Wire Housings KEY PLUG NOVO RECP Connector Accessories Keying Plug Thermoplastic Black Product Highlights:Keying PlugKeying Plug Type = Receptacle Keying PlugSearch Keywords:input/output, paddleboard, paddle board Accessory,CableConnector;ReceptacleKeyingPlug;Thermoplastic;UL94V-0 KEYING PLUG,NOVO RCPT |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | RoHSCompliant,ELVCompliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94V-0 |
机械参数
| 颜色 | Black | 深度 | 1.77 mm |
| 间距 | 2.54 mm | 宽度 | 1.77mm |
| 高度 | 1.77mm | 长度 | 5.58mm |
| 包装方式 | 袋/盒 | 基体材料 | Thermoplastic |
| 安装类型 | Straight | 连接器类型 | ReceptacleKeyingPlug |
| 接触镀层 | Tin | 排数 | 1 |
| 插入件材料 | 磷青铜 | 本体材料 | Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 5.58 mm |
| 包装数量 | 1000 | 主要材料 | 热塑性 |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 连接器颜色 | 黑色 | 触点数 | 18 |
| 兼容外壳尺寸（如TM-700等） | 母连接器 | 触头长度-柱 | 信号（数据） |
产品信息
| 类型 | Keying Plug | 系列 | AMP-Latch, AMP |
| 插头类型 | Receptacle Keying Plug | 制造商全称 | AMP |
| 产品子类型 | Keying Plug | 附件类型 | Keying Plug |
| 射频系列/标准 | 499712 | 适用产品/相关产品 | Novo Receptacles |
