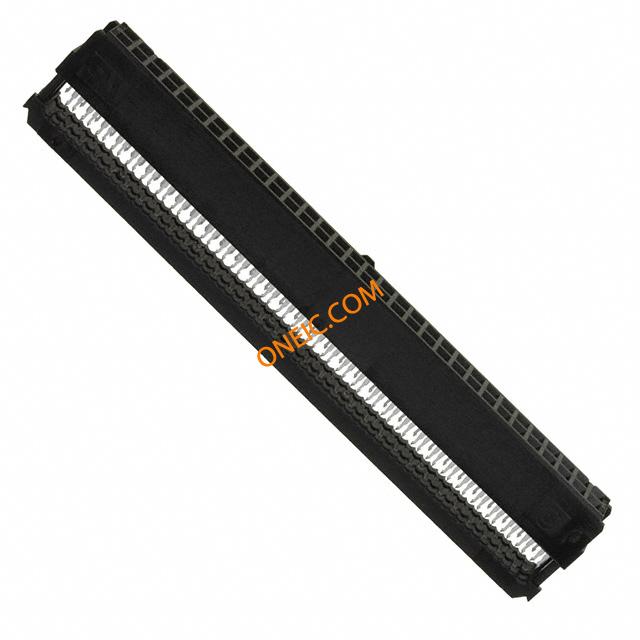

1-1658622-2

点击放大查看

1-1658622-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 64 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 64POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 64P Headers & Wire Housings .1CL IDC REC 2X32P C&M 30AU Conn IDC Connector RCP 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 64ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, IDC, 2.54MM, 64P Connector,Receptacle;Novo;64;Gold(30);Tin-Lead;0.100in.x0.100in. 64 NOVO MIL/CTR 30DP,LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series接触电阻15 mohm
最大额定电流1A最小供电电压250VAC

机械参数

颜色Black深度7.49 mm
间距2.54 mm高度15.97 mm
长度3.38in重量0.009
包装方式Bulk导线类型Ribbon Cable
出线方向Without导线线规26-28 AWG
排间距0.100" (2.54mm)端接方式IDT
触头类型Female Socket极化Center & Military
第二连接器Without外壳颜色Black
安装类型No电缆端类型Without
连接器类型NOVO接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel
安装样式Cable排数2
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度85.85 mm安装特性Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数64接触件端接:IDC / IDT
位数64中心触点材料2.54 x 2.54 [.100 x .100]
接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别RCP
系列AMP-LATCH, NOVO产品特性Feed Through, Polarizing Key
产品子类型Receptacles / Sockets - Housings连接类型Ribbon Cable
带调制解调器控制Yes

环境参数

工作温度+105°C
