点击放大查看

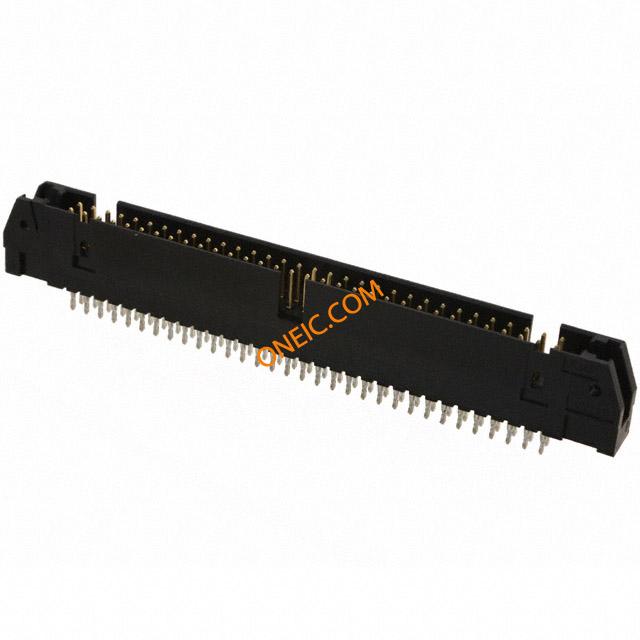

1-499582-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, |
| 分类 |
商业参数
| 标准包装数量 | 390 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Press-Fit |
| 触头类型 | Male Pin | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Tin-Lead over Nickel | 排数 | 2 |
| 封装形式 | 4-Sided | 电路板厚度 | 2.36 â 3.18 [0.093 â 0.125] |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 尺寸/外形 | 0.64 x 0.76 [.025 x .030] |
| 配接方向 | With | 位数 | 64 |
| 中心触点材料 | 2.54 x 2.54 [.100 x .100] | 接触长度 - 配合 | 0.201" (5.10mm) |
| 端子柱长度 | 4.42 [0.174] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 其他规格 | Without | 加载位置数 | All |
环境参数
| 温度额定值 | Standard | ||
