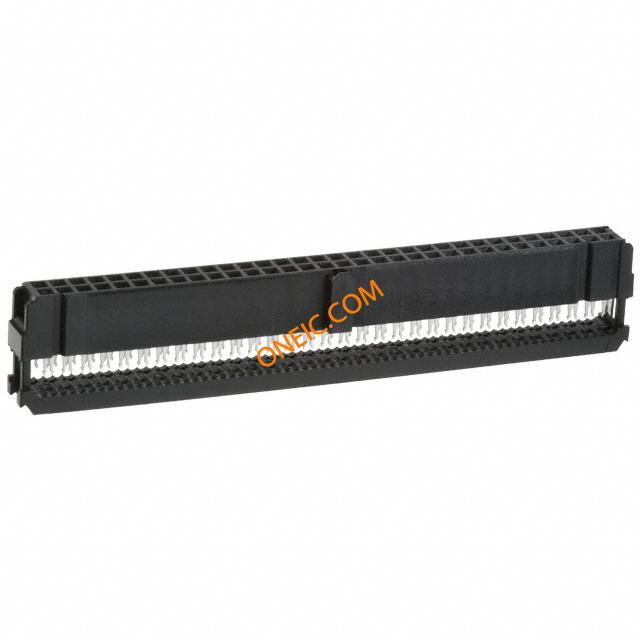

1-1658621-2

点击放大查看

1-1658621-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 64 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 64POS W/POL 15 GOLD Headers & Wire Housings .1CL IDC REC 2X32P C&M 15AU Conn IDC Connector F 64 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 64ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 64POS, 2.54MM Connector,Receptacle;Novo;64;Gold(15);Tin-Lead;0.100in.x0.100in. 64 NOVO MIL/CTR 15DP,LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series最大额定电流1/Contact A
最小供电电压250VAC

机械参数

颜色Black深度7.49 mm
间距2.54 mm高度15.97 mm
重量0.009包装方式Tube
导线类型Ribbon Cable出线方向Without
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Center & Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Nickel安装样式Cable
排数2触头材料Phosphor Bronze
壳体材料Thermoplastic总长度85.85 mm
安装特性Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数64
接触件端接:IDC / IDT位数64
中心触点材料2.54 x 2.54 [.100 x .100]接触镀层厚度15µin (0.38µm)

产品信息

类型IDC Connector连接器性别F
系列AMP-LATCH NOVO产品特性Feed Through, Polarizing Key
产品子类型Receptacles / Sockets - Housings连接类型Ribbon Cable
带调制解调器控制Yes

环境参数

工作温度-65C to 105C

文档与媒体

PDF 文档
1599153.pdf
在线文档
1-1658621-2?RQPN=1-1658621-2

相关型号

1-5102153-2

1-5102153-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 64 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM Connector;UniversalEjectionPinHeader;64;0.100in.x0.100in.;Vertical TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 64P VERT

¥17.2720
详情
1-5102156-2

1-5102156-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VERTICAL Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 64POS, 2ROW AMPLATCHHEADER-PIN,4SIDEDVERTICAL,64P A/L UNIV HDR 64P VERT

¥19.0400
详情
1-5102162-2

1-5102162-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 64POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 64P RA Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P RA

¥31.1440
详情
1-5102159-2

1-5102159-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P RA

¥23.1880
详情
1-5102155-2

1-5102155-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 64P VRT VERTICAL Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P VERT

¥23.0520
详情
1658694-5

1658694-5

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VRT PFIT AMP-LATCH UNV HDR,64 POSN,VERT AMP-LATCH UNV HDR,64 POSN,VERT Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥30.4640
详情
1-499582-2

1-499582-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header,

¥31.4840
详情
3-5499374-2

3-5499374-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD A/L UNIV HDR 64P VERT SHT LAT BLUE

¥22.6100
详情
3-5499345-2

3-5499345-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 64POS R/A GOLD Headers & Wire Housings UNIV HDR 64P R/A BLU SHORT LATCH A/L UNIV HDR 64P RA SHT LAT BLUE

¥20.7264
详情
3-5499141-2

3-5499141-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 64POS R/A POLAR GOLD A/L UNIV HDR 64P RA LG LAT BLUE

¥20.7400
详情
1-5102321-2

1-5102321-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VERT W/EJECT LATCH Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,64POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 64P VERT LG LAT

¥32.1640
详情
1-5499923-2

1-5499923-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X032P VRT EJE Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 64P VERT LG LAT

¥33.7960
详情
1-5499206-2

1-5499206-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 64 POS HDR 30AU W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 64POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 64路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 64P VERT LG LAT

¥42.0240
详情
1-5499786-2

1-5499786-2

te connectivity / amp

Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 64 POS HDR 15AU R/A W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 64POS .100 GOLD Conn Ejector Header HDR 64 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 642.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 64P RA LG LAT

¥32.9120
详情

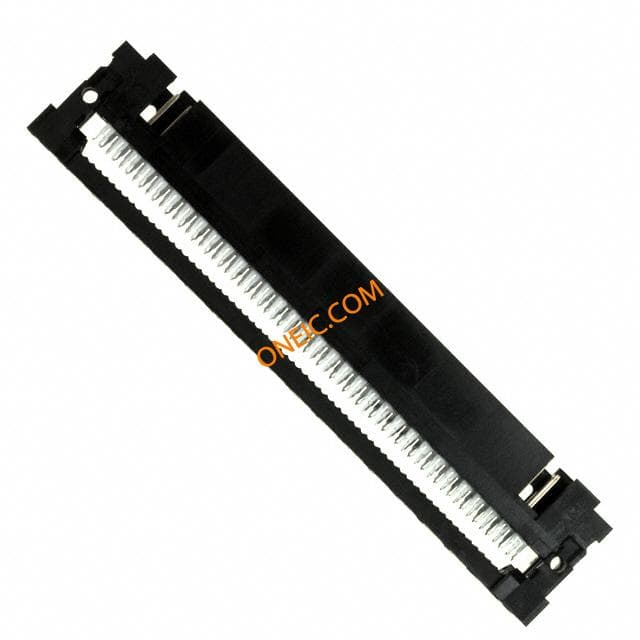

2-111446-6
