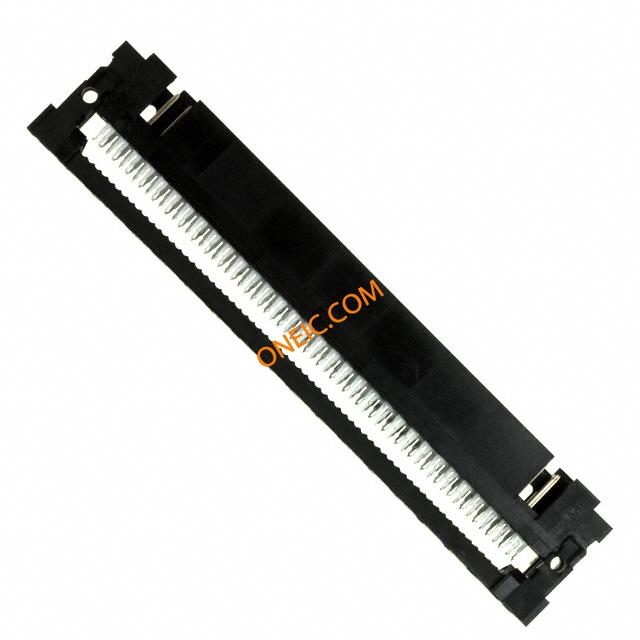

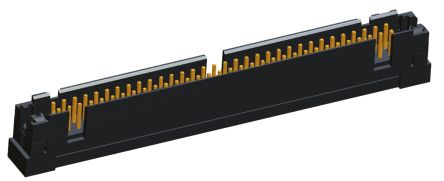

2-111446-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PL 64 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 64POS 30AU NO LATCH Headers & Wire Housings 064 UNIV I/O 30DP NO EARS 2-111446-6 Conn IDC Connector PL 64 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:PreloadedConnector Type = Universal I/OHousing Gender = Plug64 PositionsPlugSearch Keywords:input/output, paddleboard, paddle board TE Connectivity AMP-LATCH 系列 2行 64路 2.54mm节距 公 IDC 连接器 , 电缆安装 064 UNIV I/O 30DP NO EARS |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 其他名称 | APK64B |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 30 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V 交流 | 供电电压 | 250 |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 1 A | 低功耗链路范围 | 不带 |
| 连接器类型 - 电压输入 | 浸焊 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 宽度 | 8.38 mm [ .3299 in ] | 高度 | 14.48 mm [ .5701 in ] |
| 长度 | 95.81 mm [ 3.772 in ] | 底座类型 | 不带 |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 出线方向 | Without |
| 电缆类型 | 实心/绞线 | 导线线规 | 26-28 AWG |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | Universal I/O | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 驱动力 | 不带 | 插入件材料 | 磷青铜 |
| 锁定特性 | 不带 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | Without |
| 包装数量 | 30 | 面板安装类型 | 通孔 - 焊接 |
| 尺寸/外形 | .08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规 | 端接排数 | 焊接 |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 64 | 绝缘材料 - 类型 | .81 – .97 mm [ .032 – .0381 in ] |
| 位数 | 64 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 端子柱长度 | 6.1 mm [ .24 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 3.81 mm [ .15 in ] |
产品信息
| 类型 | IDC Connector | 连接器性别 | PL |
| 系列 | AMP-LATCH | 产品特性 | Feed Through |
| 极性 | 带有 | 盖类型 | 是 |
| 产品子类型 | Connectors | 连接类型 | Ribbon Cable |
环境参数
| 工作温度 | +105°C | ||
